Explore Our Cutting-Edge Wireless Security Solutions
At COMRAD, we specialize in providing advanced wireless security devices tailored to meet the needs of modern security teams. Our products are designed to deliver unmatched reliability, seamless communication, and robust performance in critical environments.

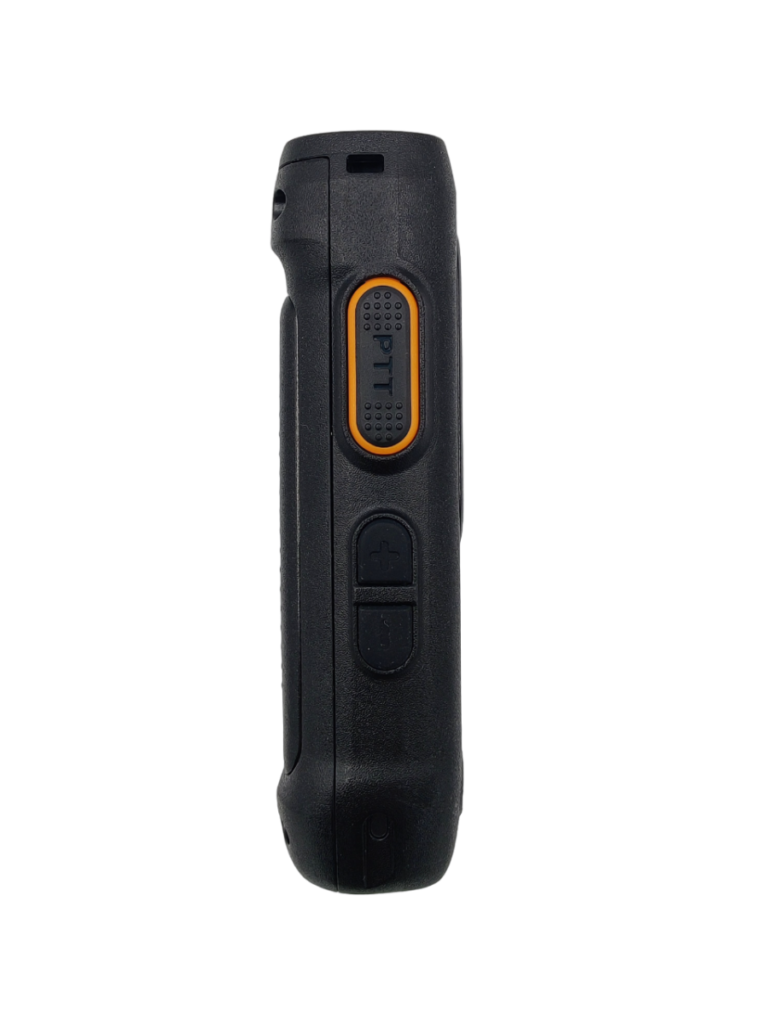

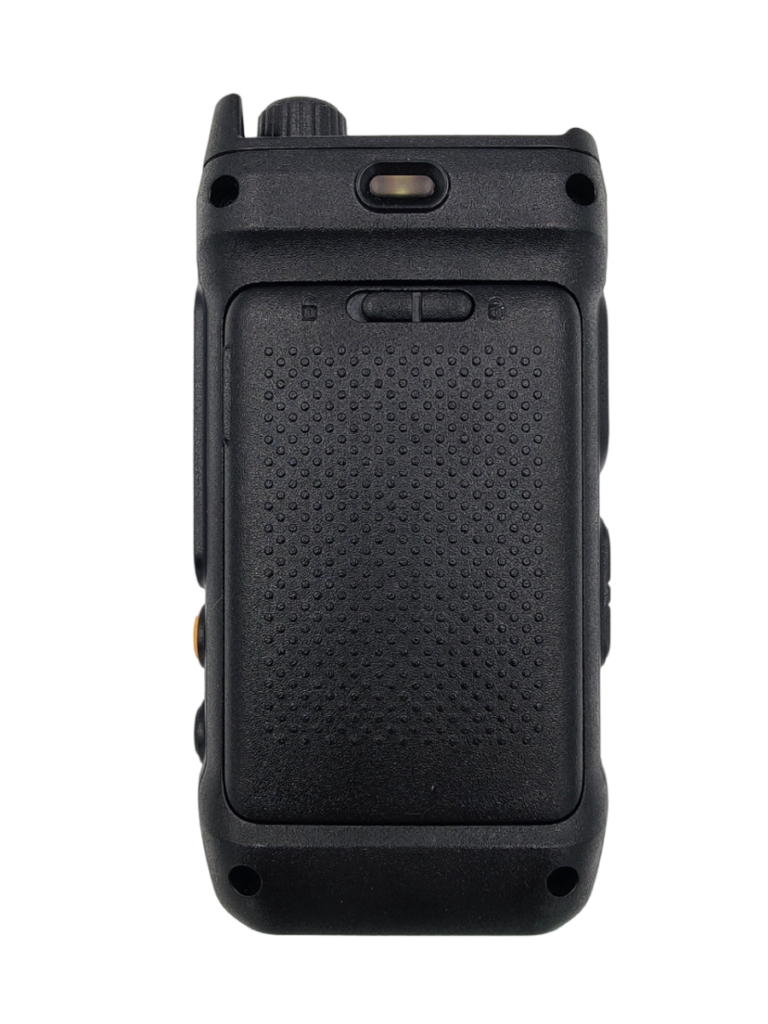

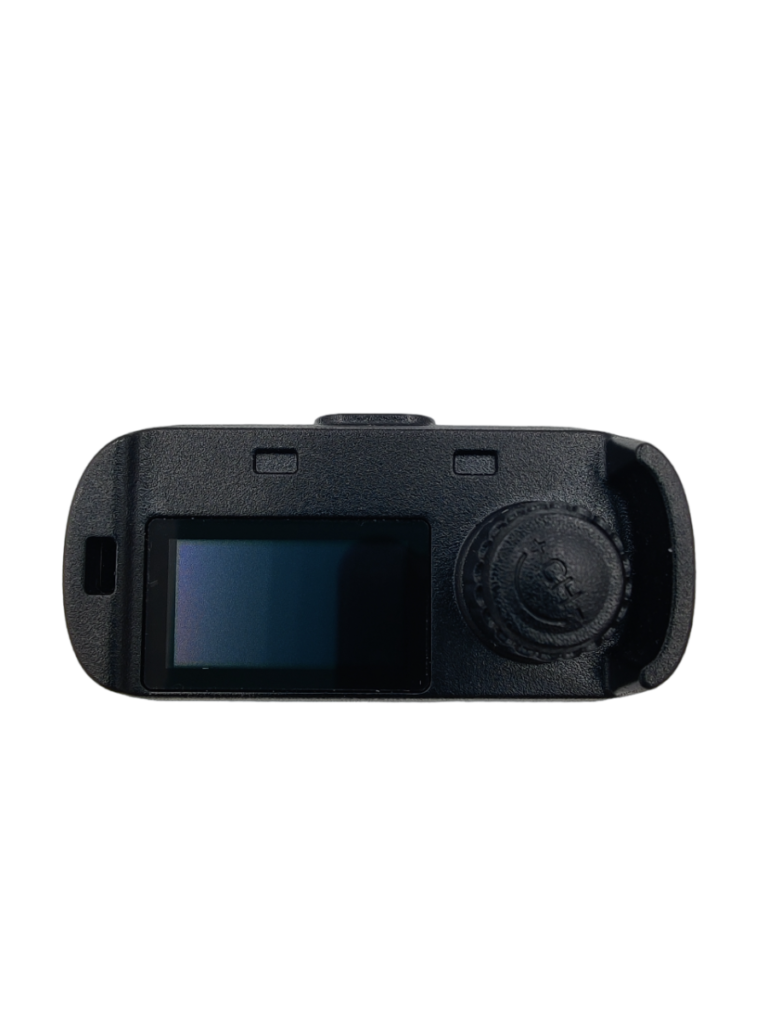

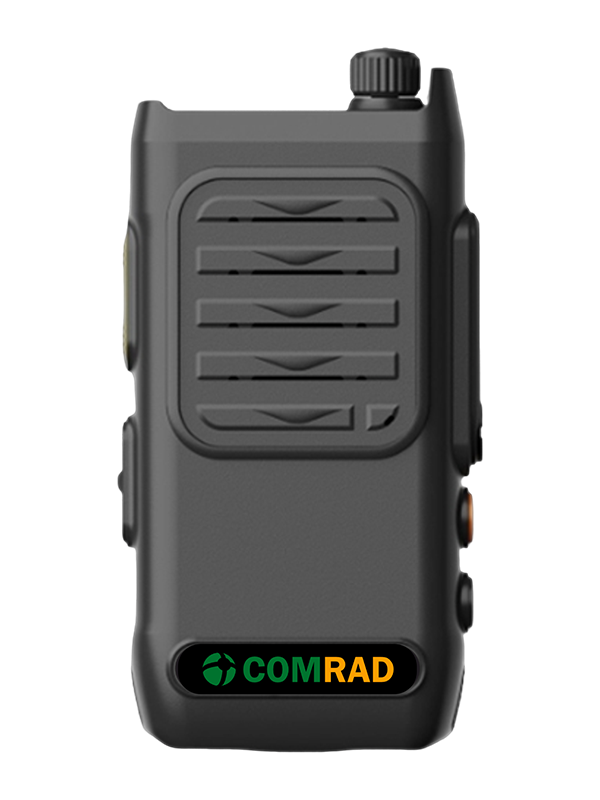

COMRAD CP10
Description
Portable POC terminal with installed COMRAD Client application, shipped with standard accessories: Li-Ion battery, USB cable, Desk-Top Charger, Belt clip, and with User manual.
CP10 can work in COMRAD communication systems with connection through 3G/LTE or Wi-Fi networks.
CP10 can be used by technical staff for PTT group and individual communication in different market segments.
CP10 – compact, simple and reliable portable POC terminal with convenient PTT button, audio volume regulator, channels switch, small OLED 0,95” screen, 2W loudspeaker, GPS, SOS, navigation and programmable buttons.
The indication of the channel number, network signal level, and battery charge are shown on the screen. Water and dust protected (IP67). The M6 Connector is used to connect CP10 with different accessories like Wired headset, RSM Speaker, D-shape headset etc.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 1.1 Ghz |
| Memory | 1GB（RAM）+ 8GB（ROM) |
| Screen | OLED 0,97” |
| Special buttons | PTT |
| SIM Cart slots | Standard SIM card |
| Working bands | GSM: B2 B3 B5 B8; WCDMA: B1 B2 B5 B8; TDSCDMA: B34 B39; FDD-LTE: B1 B3 B7 B8 B20 B28A B28B; TDD-LTE: B38 B39 B40 B41 |
| Wi-Fi | IEEE802.11a/b/g/n(2.4G, 5G) |
| Bluetooth | 4.0 BLE/2.1+EDR |
| Dimensions | 117mm*60mm*30mm |
| Weight | 182 g |
| Working temperature | -20°C / +60°C |
| Storage temperature | -30°C / +70°C |
| Robust and Protection | IP67 |
| Positioning | GNSS |
| Battery | 3600mAh |

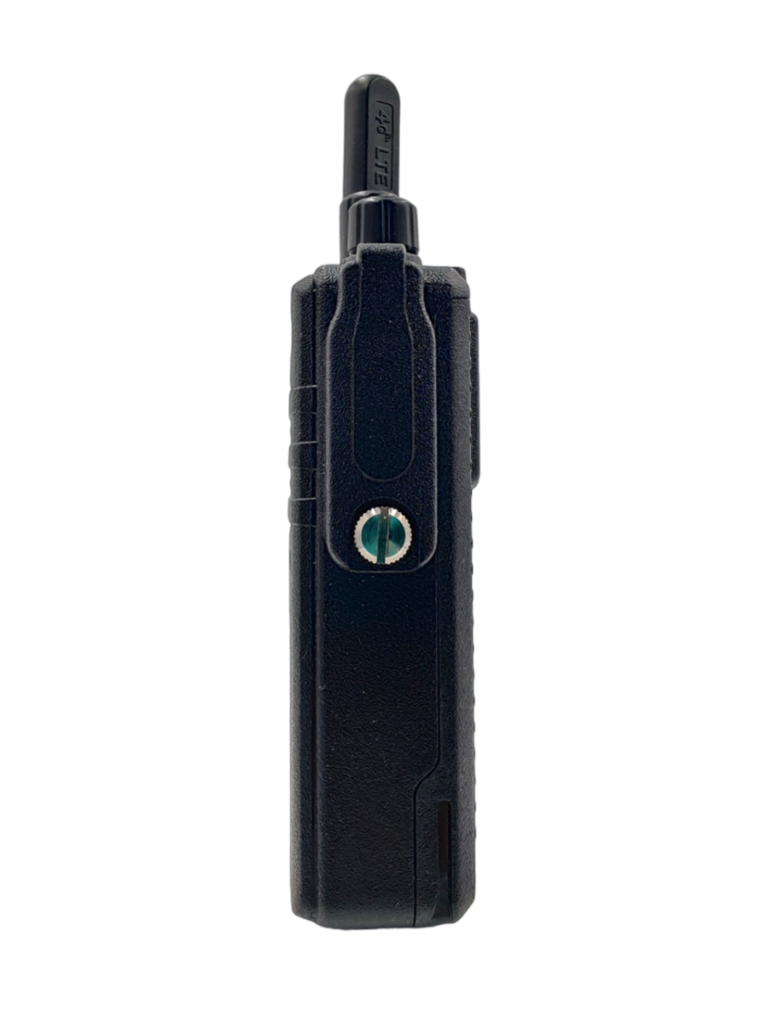

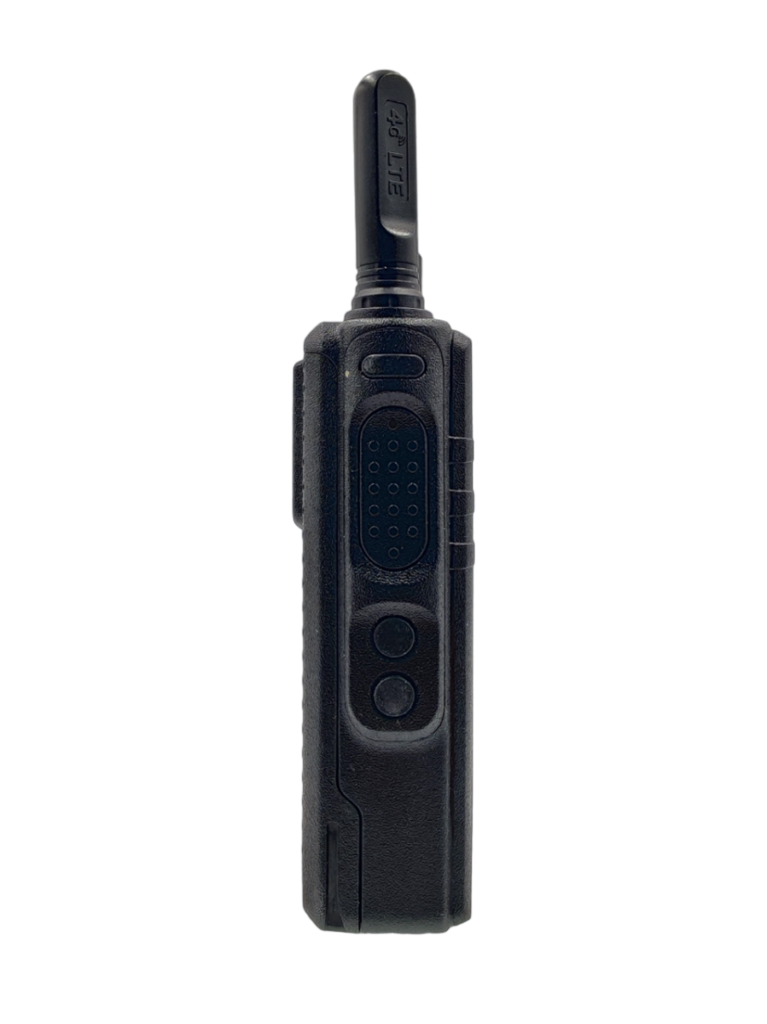

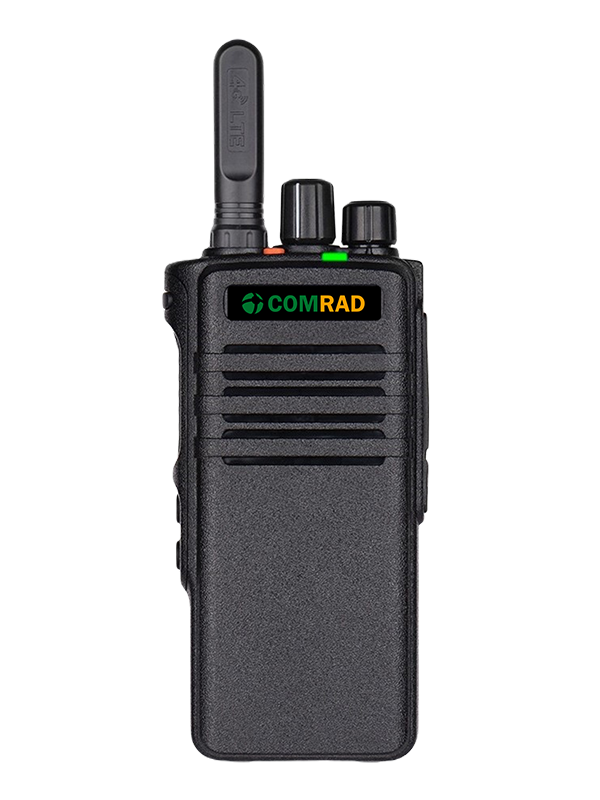

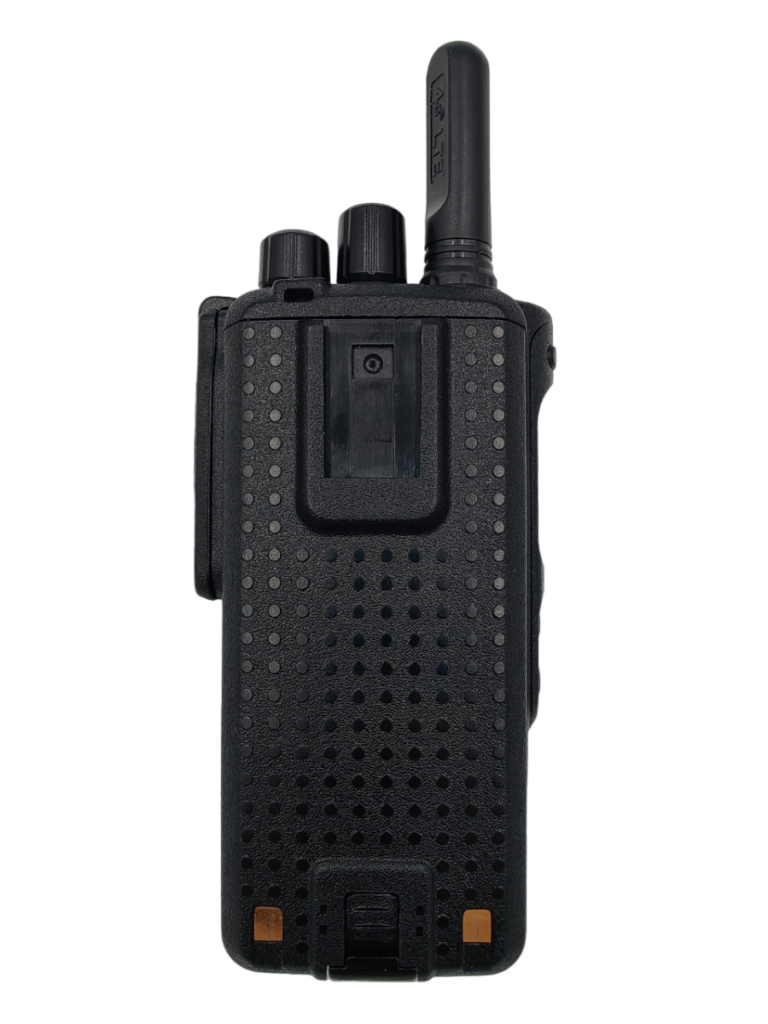

COMRAD CP11
Description
Portable POC terminal with installed COMRAD Client application, shipped with standard accessories: Li-Ion battery, USB cable, Desk-Top Charger, Belt clip, and with User manual.
CP11 can work in COMRAD communication systems with connection through 3G/LTE or Wi-Fi networks.
CP11 can be used by technical staff for PTT group and individual communication in different market segments.
CP11 – easy-to-use and reliable portable POC terminal with convenient PTT button, audio volume regulator, channels switch, 2W loudspeaker, GPS, SOS, navigation and programmable buttons.
The indication of the group and channel number by Text-to-Speech function. Powerful battery guaranty long-lasting and excellent Push-To-Talk performance. The M6 Connector is used to connect CP11 with different accessories like Wired headset, RSM Speaker, D-shape headset etc.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 1.5 Ghz |
| Memory | 1GB（RAM）+ 8GB（ROM) |
| Screen | no |
| Loudspeaker | 2.0W, Φ40mm |
| Special buttons | PTT |
| SIM Cart slots | Standard SIM card |
| Working bands | GSM:B2 B3 B5 B8; FDD-LTE:B1 B3 B5 B7 B8 B20 B28A/B; TDD-LTE:B38 B39 B40 B41 |
| Wi-Fi | IEEE 802.11 a/b/g/n |
| Bluetooth | 4.2 |
| Interfaces | Micro USB 2.0; M6/K Port |
| Dimensions | 141.2mm*63.7mm*37.5mm |
| Weight | 310 g |
| Working temperature | -20°C / +55°C |
| Storage temperature | -30°C / +70°C |
| Robust and Protection | IP54 |
| Positioning | GNSS |
| Battery | 4800mAh |

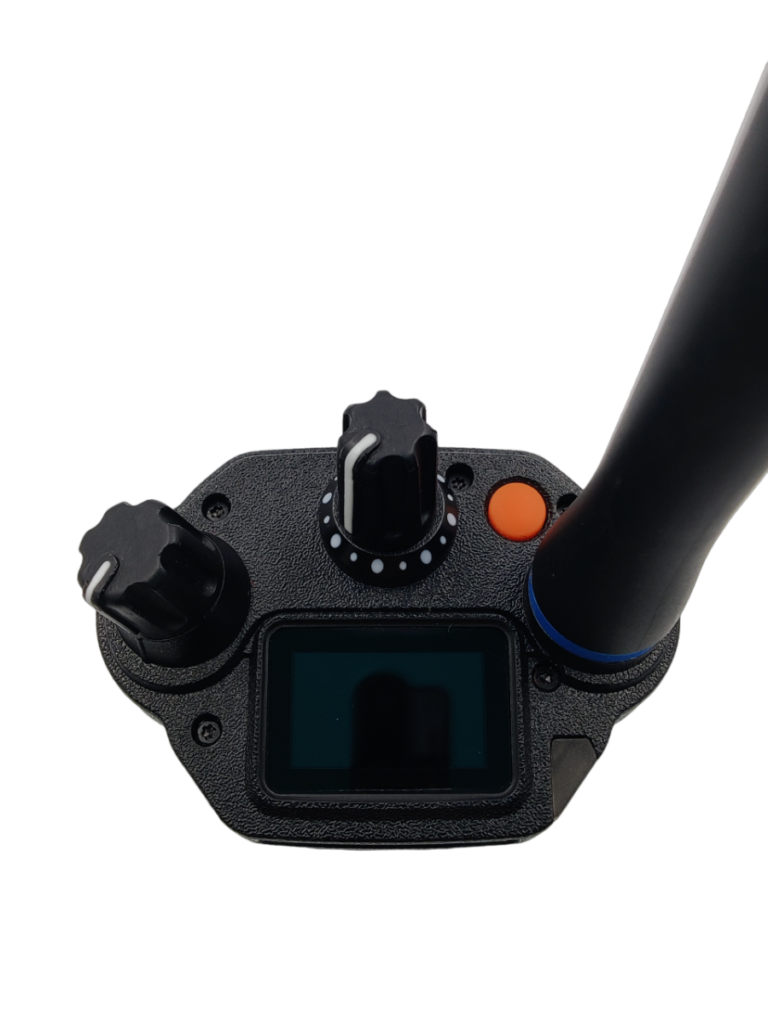

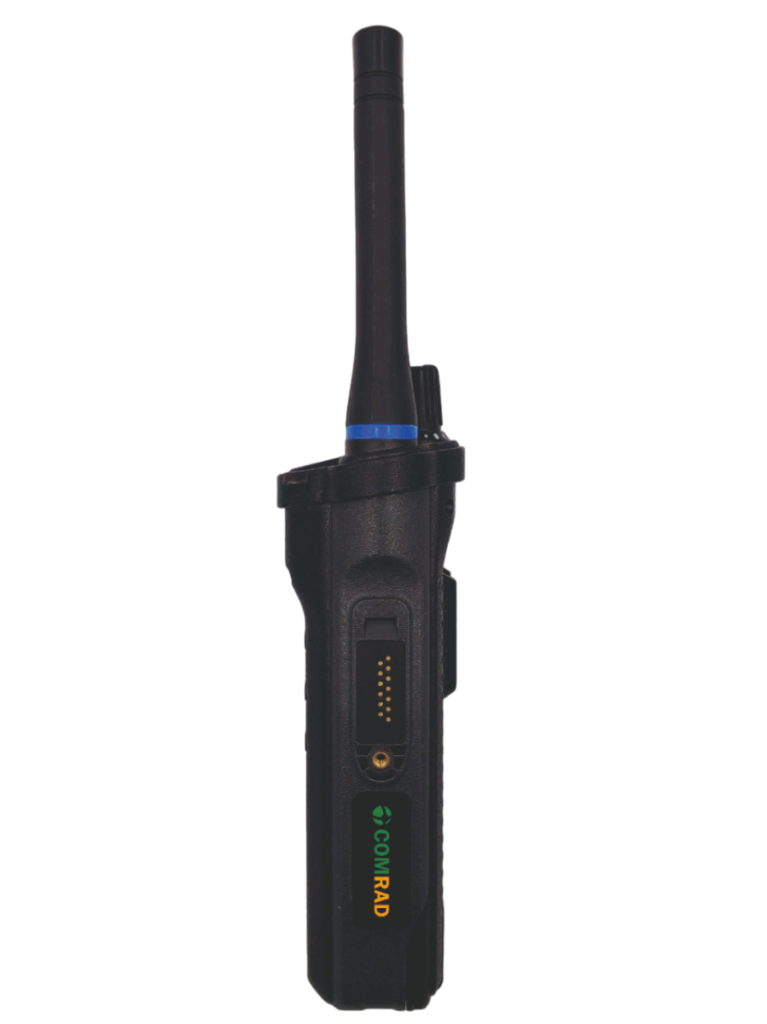

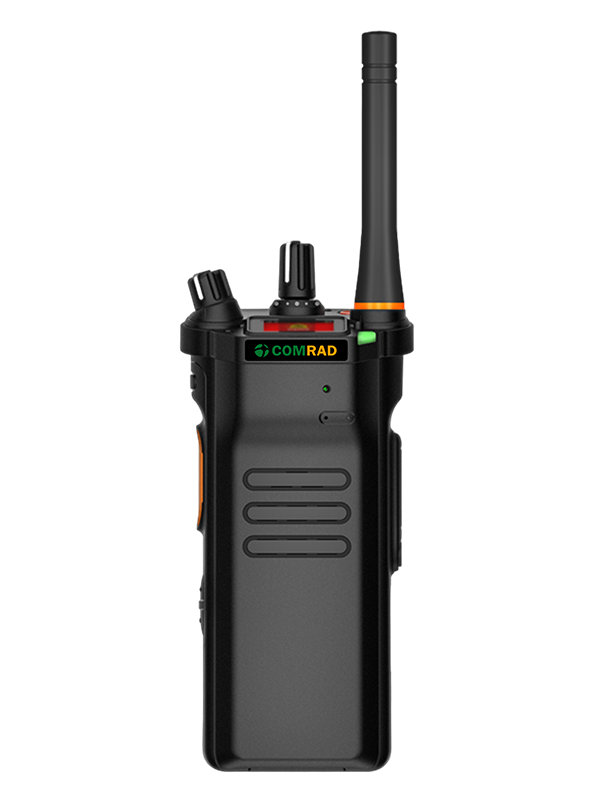

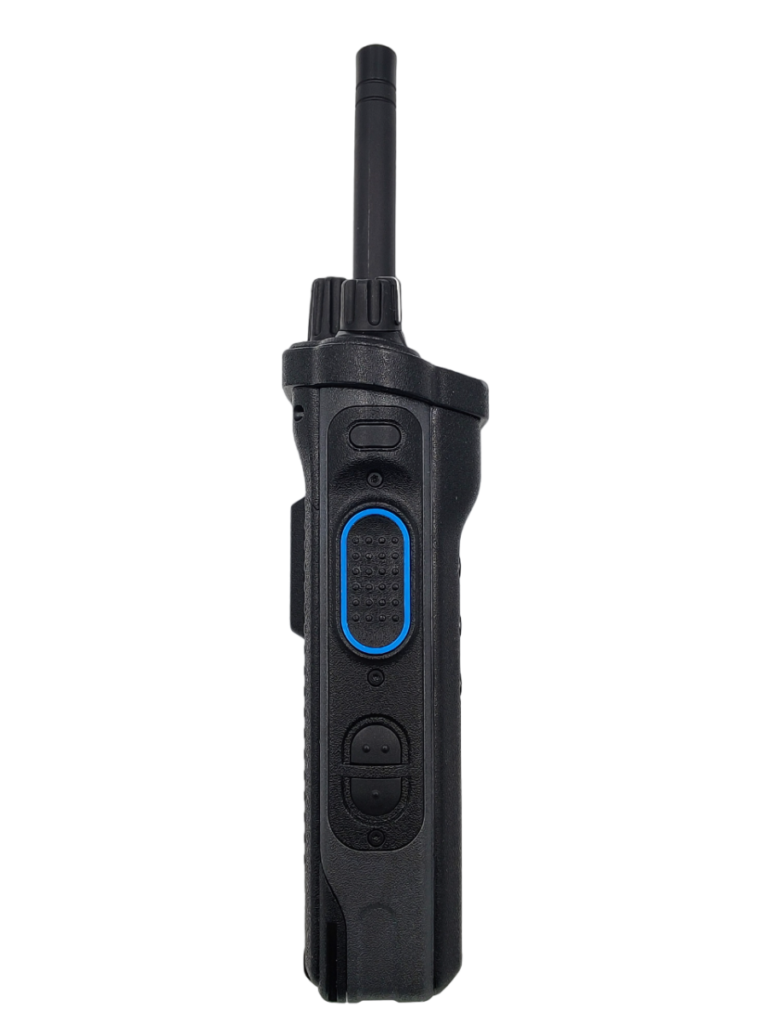

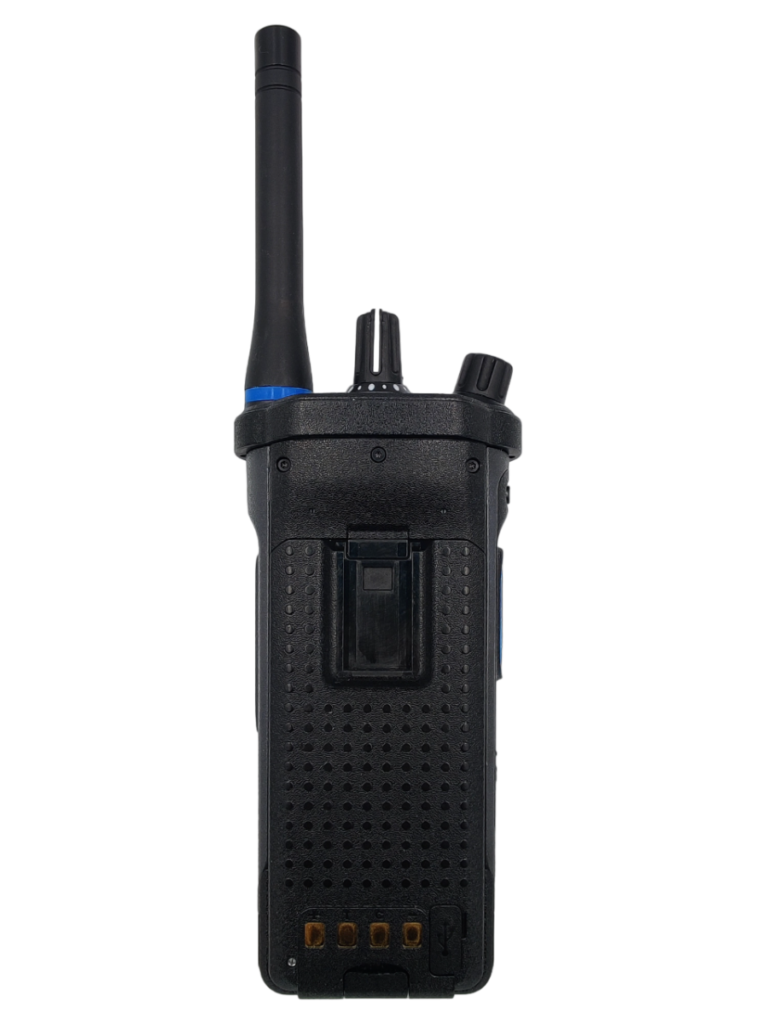

COMRAD CP12
Description
Portable POC terminal with installed COMRAD Client application, shipped with standard accessories: Li-Ion battery, USB cable, Desk-Top Charger, Belt clip, and with User manual.
CP12 can work in COMRAD communication systems with connection through 3G/LTE or Wi-Fi networks.
CP12 has top level of ruggedness and reliability required for routine activities and extreme emergencies in different market segments including public safety and military applications.
CP12 – very robust and reliable portable POC terminal with convenient PTT button, audio volume regulator, channels switch, 1W loudspeaker, OLED 1,8” screen, 8 MP front camera, GPS, SOS, navigation and programmable buttons.
The indication of the group and channel number by Text-to-Speech function. Ultra powerful battery guaranty long-lasting and excellent Push-To-Talk performance. CP12 has high level of water and dust protection (IP68). The M6 Connector is used to connect CP12 with different accessories like Wired headset, RSM Speaker, D-shape headset etc.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 1.5 Ghz |
| Memory | 1GB（RAM）+ 8GB（ROM) |
| Screen | 1.8″ |
| Loudspeaker | Ø40mm,16Ω 1W |
| Special buttons | PTT |
| Camera | Front Camera 8 MP |
| SIM Cart slots | Dual Nano Sim |
| Working bands | GSM: B2/B3/B5/B8; WCDMA: B1/B2/B5/B8; TDD-LTE: B38/B39/B40/B41; FDD-LTE: B1/B3/B5/B7/B8/B20/B28a/B28b |
| Wi-Fi | 802.11 a/b/g/n 2.4G&5G |
| Bluetooth | 4.2 |
| Interfaces | USB-Type С, M6 |
| Dimensions | 172.8*76.3*50.7 |
| Weight | 408g |
| Working temperature | -20°C / +55°C |
| Storage temperature | -30°C / +70°C |
| Robust and Protection | IP68, 1 m drop test, MIL-STD 810H |
| Positioning | GNSS |
| Battery | 6400 mAh |

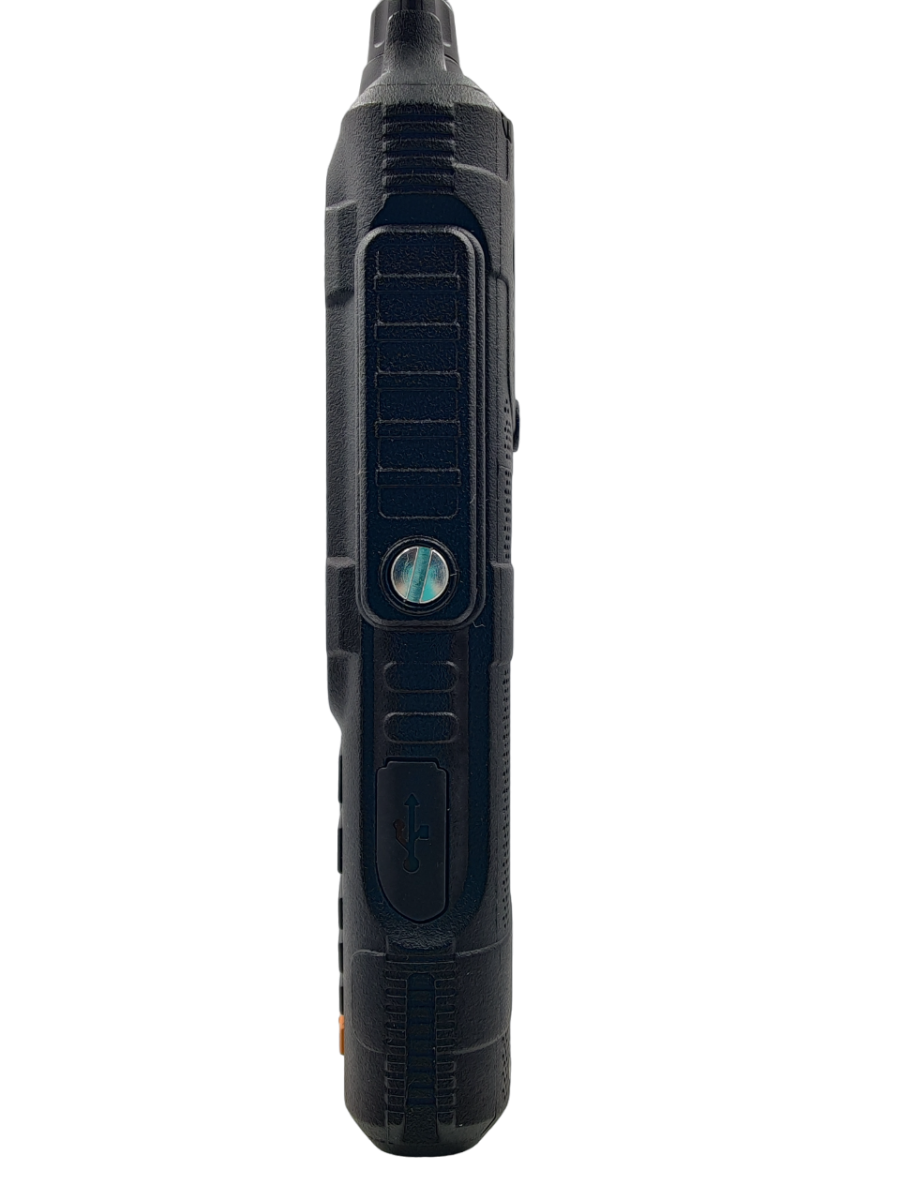

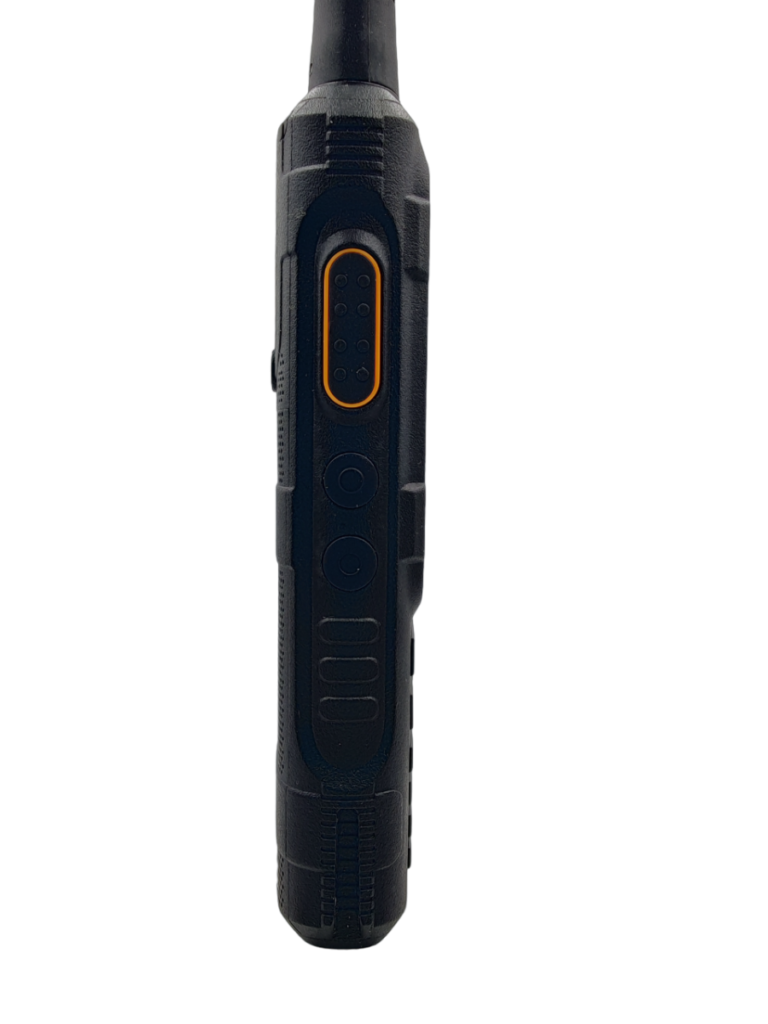

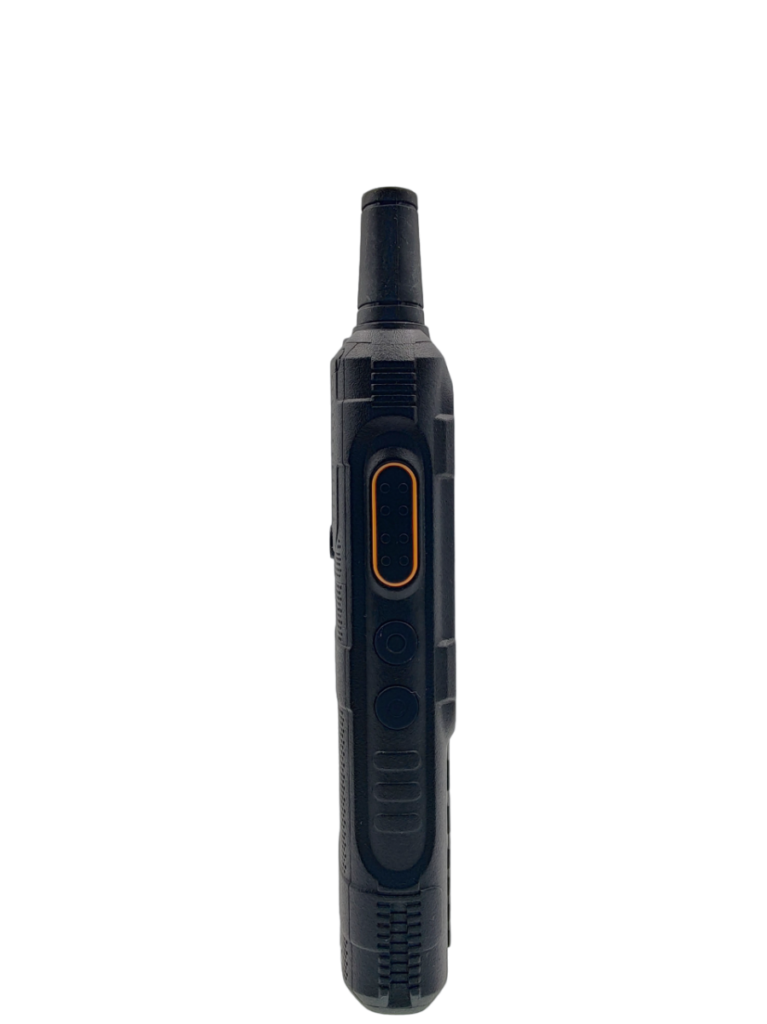

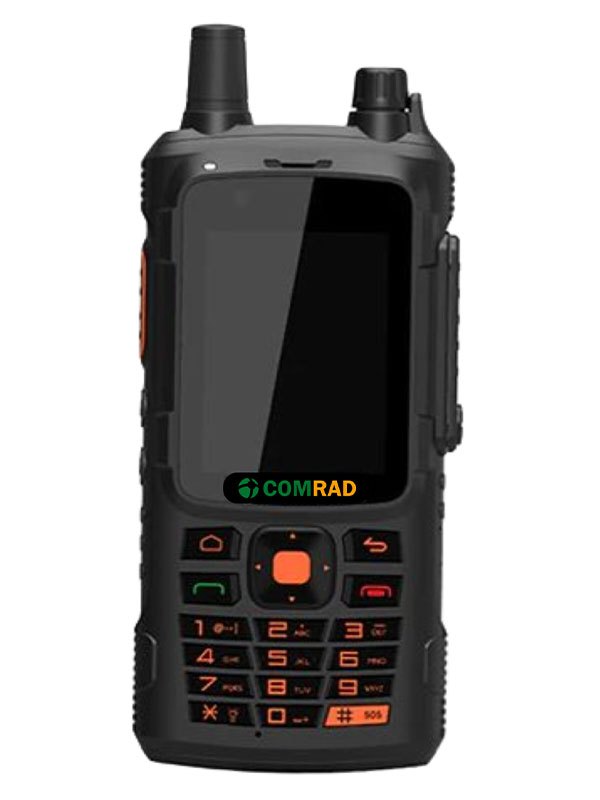

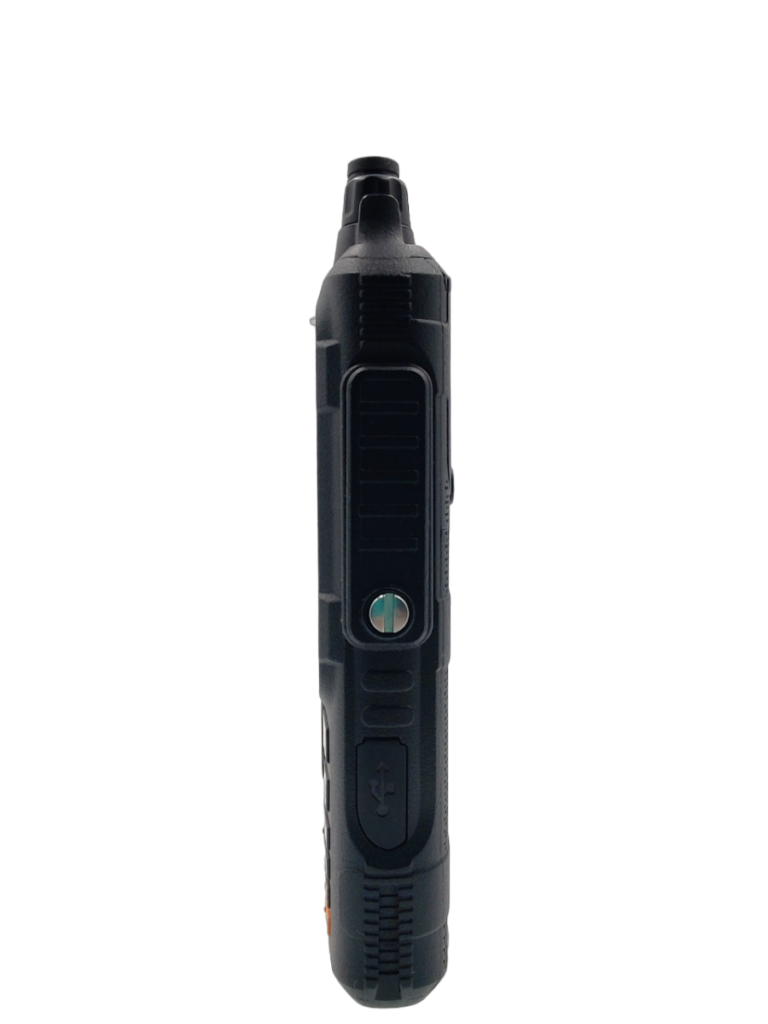

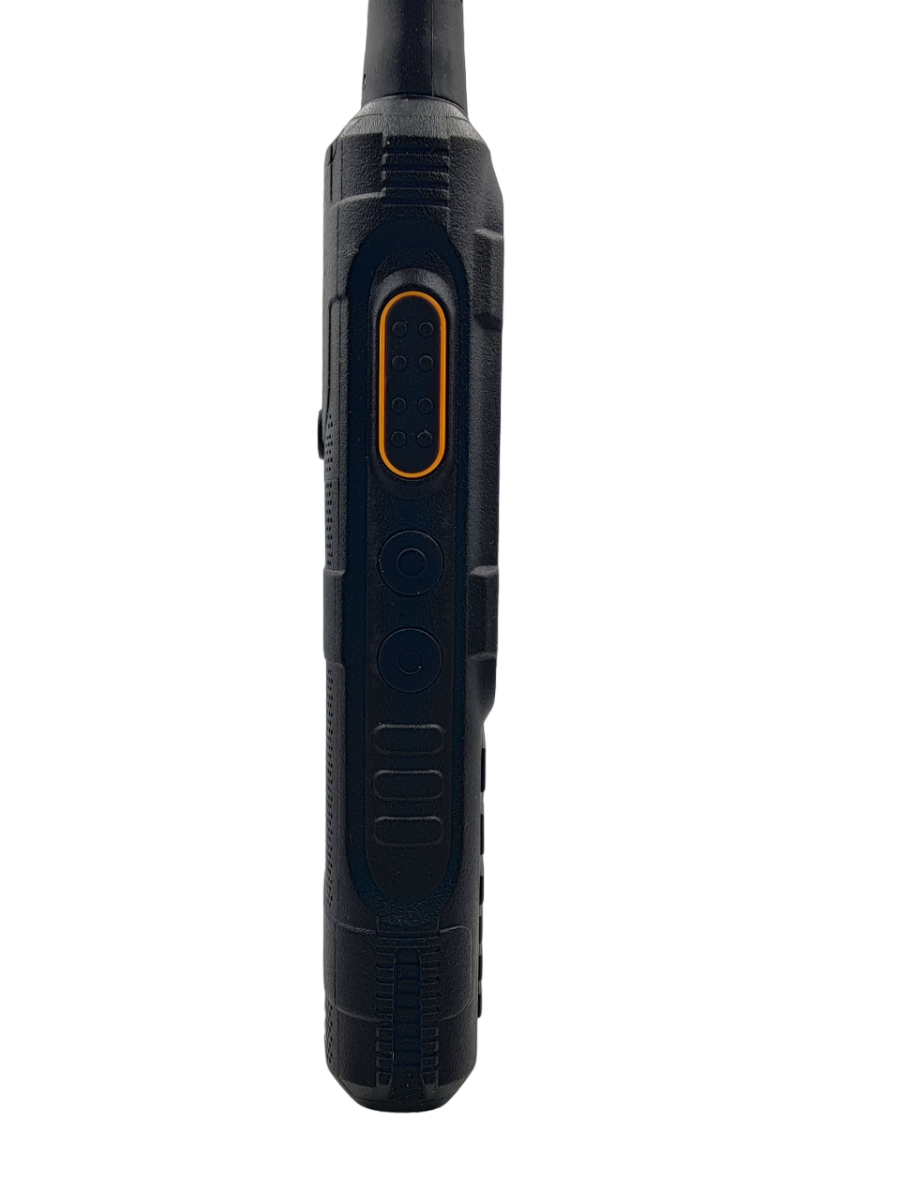

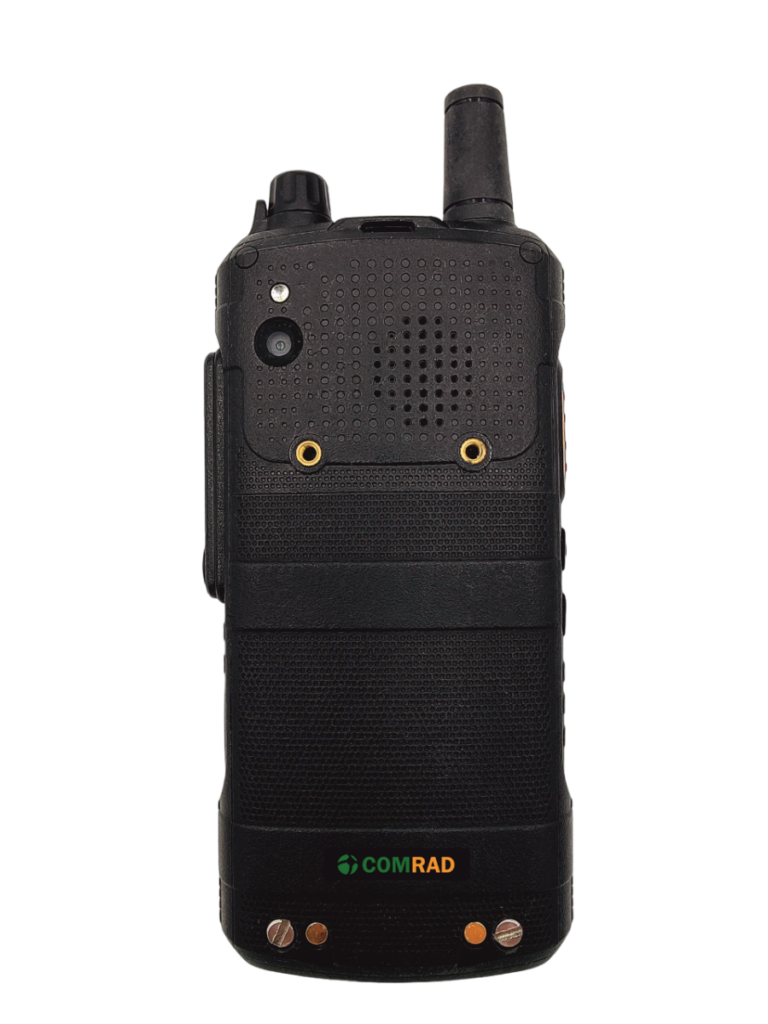

COMRAD CP20
Description
Portable POC terminal with installed COMRAD Client application, shipped with standard accessories: Li-Ion battery, USB cable, Desk-Top Charger, Belt clip, and with User manual.
CP20 can work in COMRAD communication systems with connection through 3G/LTE or Wi-Fi networks.
CP20 can be used by middle level management and field technical staff for PTT group and individual communication in different market segments.
CP20 – functional and reliable portable POC terminal with convenient PTT button, audio volume regulator, 2W loudspeaker, 2,4”TFT touch screen, keyboard, 2 (5MP and 2MP) cameras, GPS, navigation and programmable buttons.
The indication of the group and channel number is shown on the screen. Powerful battery guaranty long-lasting and excellent Push-To-Talk performance. Water and dust protection (default IP65, optional IP67). The M6 Connector is used to connect CP20 with different accessories like Wired headset, RSM Speaker, D-shape headset etc.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 1.3 GHz |
| Memory | 1GB（RAM）+ 8GB（ROM) |
| Screen | LCD: 2,4″ TFT touch screen |
| Loudspeaker | 2W |
| Special buttons | PTT |
| Camera | 5M pixel + 2M pixel |
| SIM Cart slots | Dual Micro Sim |
| Working bands | GSM:B2 B3 B5 B8; FDD-LTE:B1 B3 B5 B7 B8 B20 B28A/B; TDD-LTE:B38 B39 B40 B41 |
| Wi-Fi | 802.11 a/b/g/n 2.4G&5G |
| Bluetooth | 4.2 |
| Interfaces | Micro USB 2.0, M6 Earphone Jack |
| Dimensions | 134mm*65mm*23.5mm |
| Weight | 257g |
| Working temperature | -20°C / +55°C |
| Storage temperature | -30°C / +70°C |
| Robust and Protection | IP65 default (IP6 7 Optional), 1,2 m drop test |
| Positioning | GNSS |
| Battery | 3500 mAh |

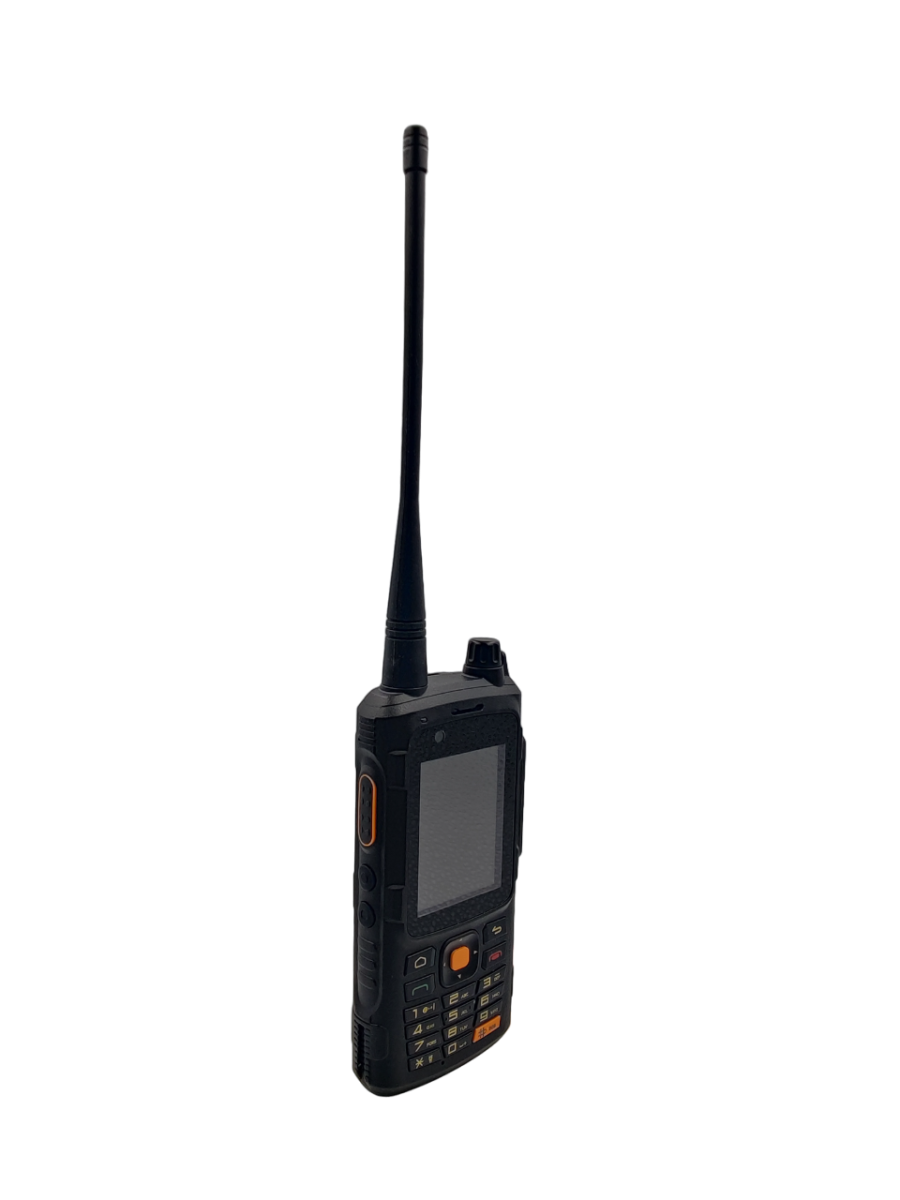

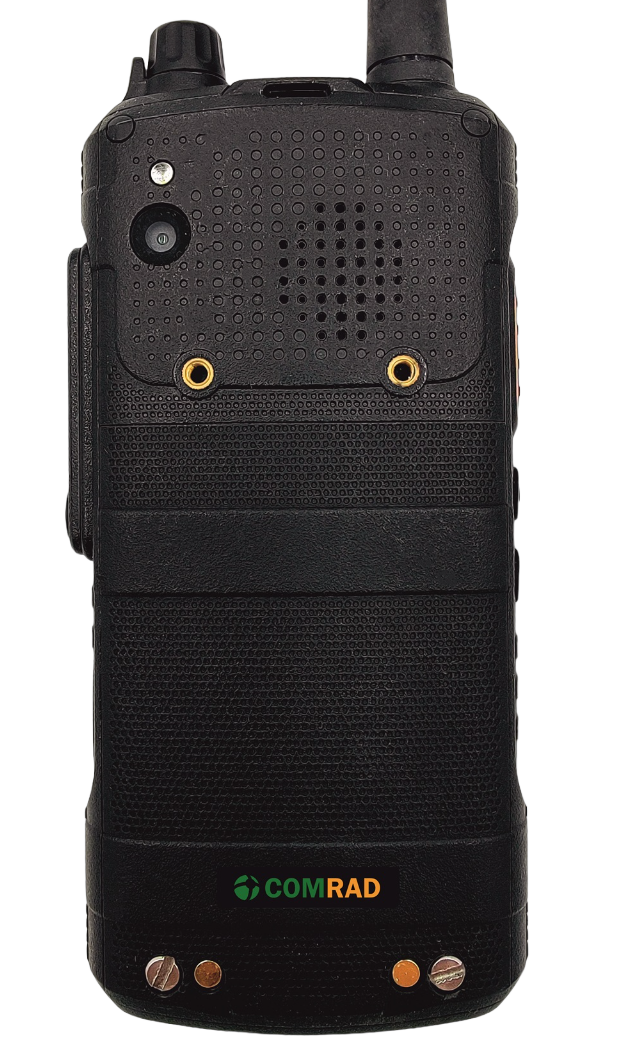

COMRAD CP20 UV
Description
Dual mode (POC and DMR/Analog) Portable terminal with installed COMRAD Client application, shipped with standard accessories: Li-Ion battery, USB cable, Desk-Top Charger, Belt clip, and with User manual.
CP20 UV can work in COMRAD communication systems with connection through 3G/LTE or Wi-Fi networks and also in DMR Tier II or Analog Radio Systems.
CP20 UV can be used by middle level management and field technical staff for PTT group and individual communication in different market segments. CP20 UV can work in “mixed” communication system (POC + PMR) or in POC system to provide direct mode communication between the terminals (work without 3G/LTE or Wi-Fi coverage).
CP20 UV – functional and reliable portable multi mode terminal with convenient PTT button, audio volume regulator, 2W loudspeaker, 2,4”TFT touch screen, keyboard, 2 (5MP and 2MP) cameras, GPS, navigation and programmable buttons. The DMR/Analog band (VHF or UHF) should be specified during the ordering.
The indication of the group and channel number is shown on the screen. The switch between POC and DMR/Analog cab be done by channel change. Powerful battery guaranty long-lasting and excellent Push-To-Talk performance. Water and dust protection (default IP65, optional IP67). The M6 Connector is used to connect CP20 UV with different accessories like Wired headset, RSM Speaker, D-shape headset etc.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 1.3 GHz |
| Memory | 1GB（RAM）+ 8GB（ROM) |
| Screen | LCD: 2,4″ TFT touch screen |
| Loudspeaker | 2W |
| Special buttons | PTT |
| Camera | 5M pixel+ 2M pixel |
| SIM Cart slots | Dual Micro Sim |
| Working bands | GSM:B2 B3 B5 B8, FDD-LTE:B1 B3 B5 B7 B8 B20 B28A/B, TDD-LTE:B38 B39 B40 B41 |
| Wi-Fi | 802.11 a/b/g/n 2.4G&5G |
| Bluetooth | 4.2 |
| Interfaces | Micro USB 2.0, M6 Earphone Jack |
| Dimensions | 134mm*65mm*23.5mm |
| Weight | 257g |
| Working temperature | -20°C / +55°C |
| Storage temperature | -30°C / +70°C |
| Robust and Protection | IP65 default (IP6 7 Optional), 1,2 m drop test |
| Positioning | GNSS |
| Battery | 3500 mAh |
| DMR/Analogue mode | VHF: 136-174 MHz |
| DMR/Analogue mode | UHF: 400-470 MHz |

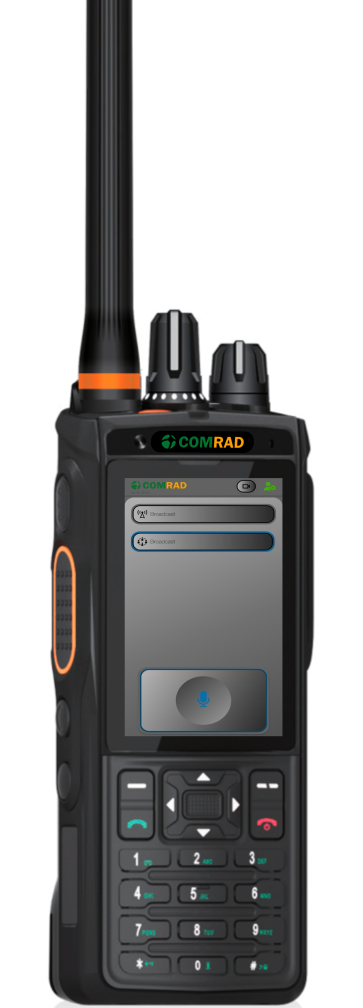

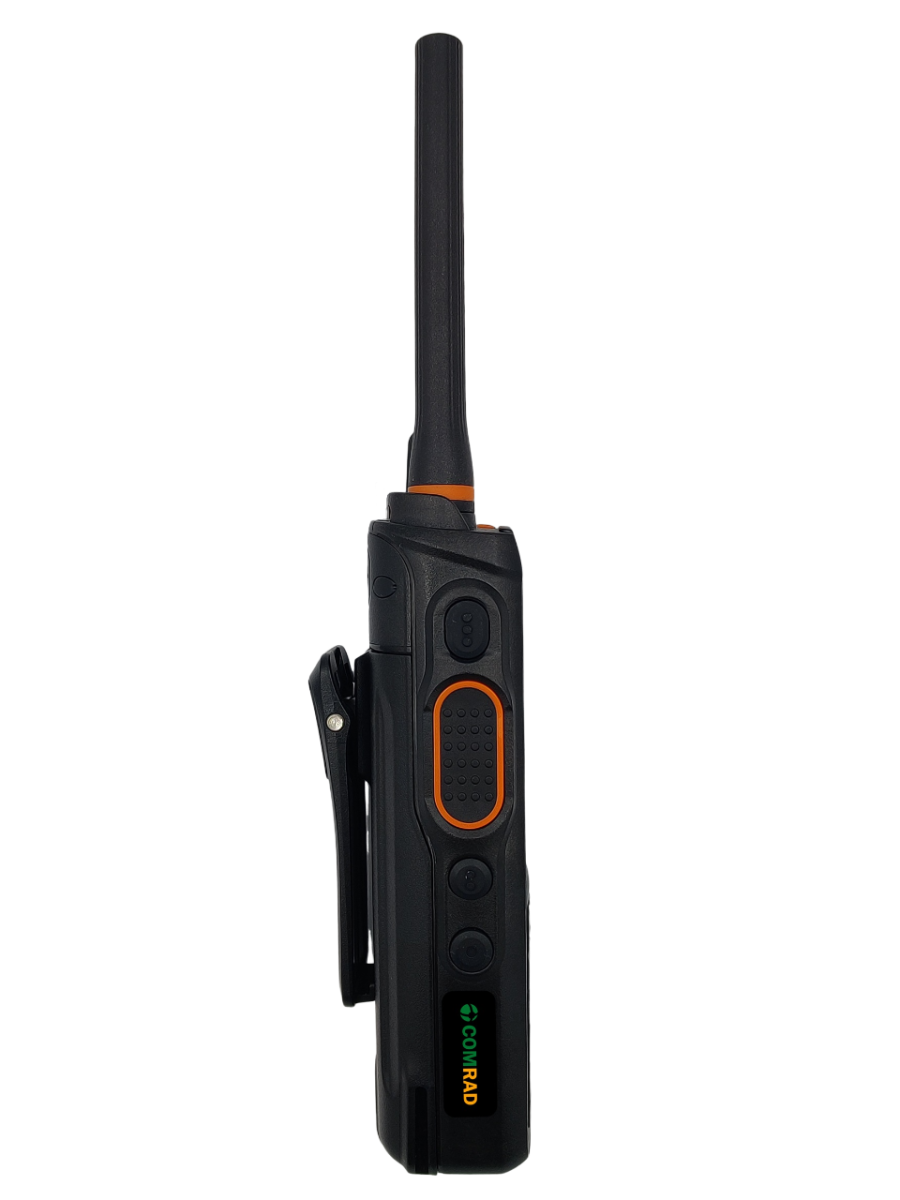

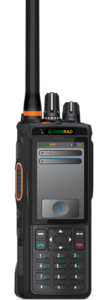

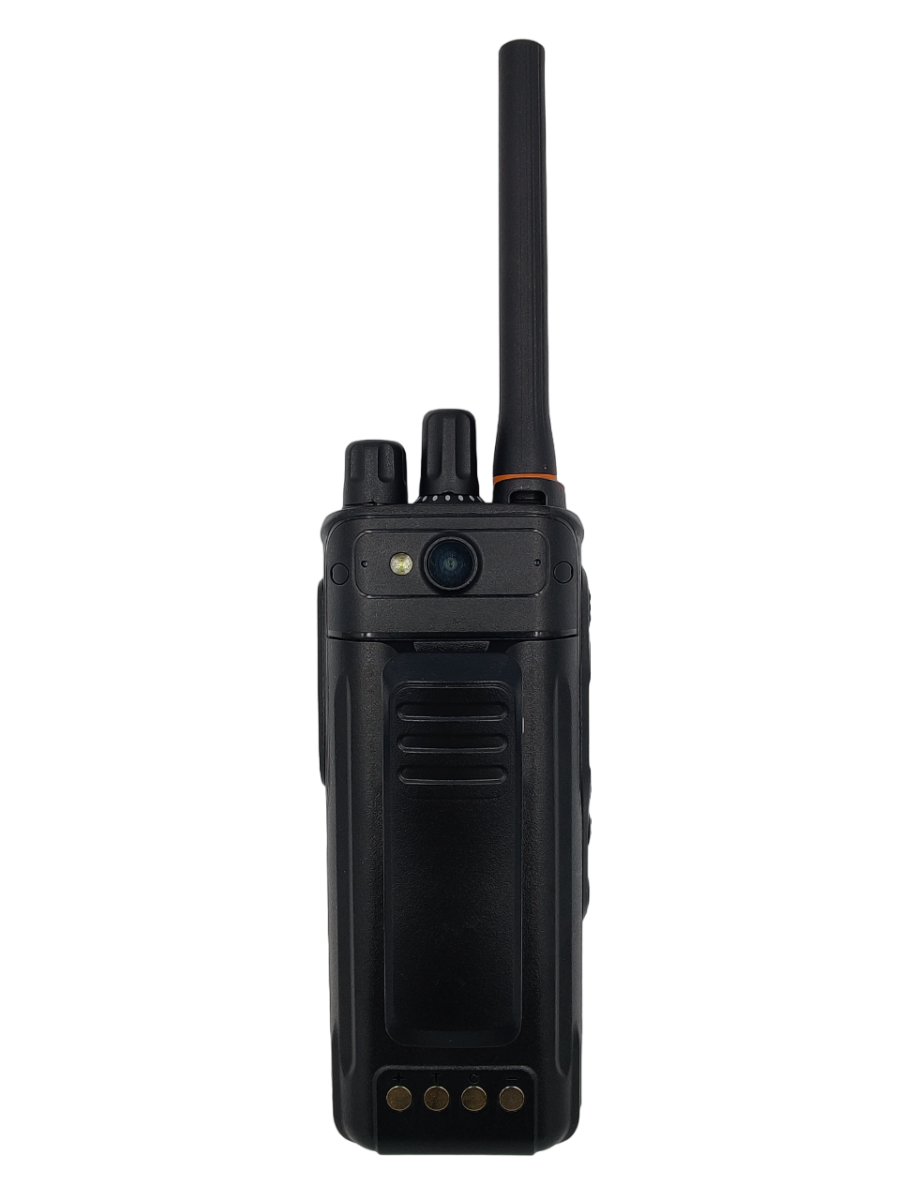

COMRAD CP30 UV
Description
Dual mode (POC and DMR/Analog) Portable terminal with installed COMRAD Client application, shipped with standard accessories: Li-Ion battery, USB cable, Desk-Top Charger, Belt clip, and with User manual.
CP30 UV can work in COMRAD communication systems with connection through 3G/LTE or Wi-Fi networks and also in DMR Tier II or Analog Radio Systems.
CP30 UV can be used by middle level management and field technical staff for PTT group and individual communication in different market segments. CP30 UV can work in “mixed” communication system (POC + PMR) or in POC system to provide direct mode communication between the terminals (work without 3G/LTE or Wi-Fi coverage).
CP30 UV – functional, robust and reliable portable multi mode terminal with convenient PTT button, audio volume regulator, channel switch, 3W loudspeaker, 2,4” color touch screen, keyboard, 2 (13MP and 5MP) cameras, GPS, SOS, navigation and programmable buttons. The DMR/Analog band (VHF or UHF) should be specified during the ordering.
The indication of the group and channel number is shown on the screen. The switch between POC and DMR/Analog cab be done by channel change. Powerful 7.6V battery guaranty long-lasting and excellent Push-To-Talk performance. High level of water and dust protection (IP68). The M6 Connector is used to connect CP30 UV with different accessories like Wired headset, RSM Speaker, D-shape headset etc.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 1.3 Ghz |
| Memory | 2G+16G (up to 32G)（RAM + ROM) |
| Screen | 2.4 inch, 480 x 640 |
| Loudspeaker | Ø36mm waterproof speaker, 8Ω 3W |
| Special buttons | PTT, Emergency |
| Camera | Front camera 5.0MP; Rear camera 13.0M, 107° ultra-wide angle |
| Microphone | Master-microphone+Slave-microphone+Noise-cancelling microphone |
| SIM Cart slots | Dual SIM Card+ TF Card |
| Working bands | 2G: B2/B3/B5/B8; 3G:B1/B2/B4/B5/B8; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B26/B28/B66; TDD-LTE: B38/B39/B40/41 |
| Wi-Fi | 2.4G & 5G, IEEE 802.11 a/b/g/n/ac/k/v/r |
| Bluetooth | 5.0 BLE |
| NFC | Customizable |
| DMR support | Tier II |
| Frequency range | UHF: 400-480MHz (model CP30U)（VHF: 136-174MHz (model CP30V) |
| Transmit power | 4 W (model CP30U), 5 W (model CP30V) |
| Dimensions | 162.3 x 61 x 38mm (Thick Battery, without Belt Clip and Antenna); 162.3 x 61 x 34.5mm (Thin Battery, without Belt Clip and Antenna) |
| Weight | ≈350g |
| Working temperature | -5°C / +55°C |
| Storage temperature | -20°C / +70°C |
| Robust and Protection | IP68, Drop Test 1.5m, CE/FCC/MIL-STD-810H/GMS |
| Positioning | GNSS |
| Battery | 3100mAh(Removable), 4000mAh(Optional), 7.6V |

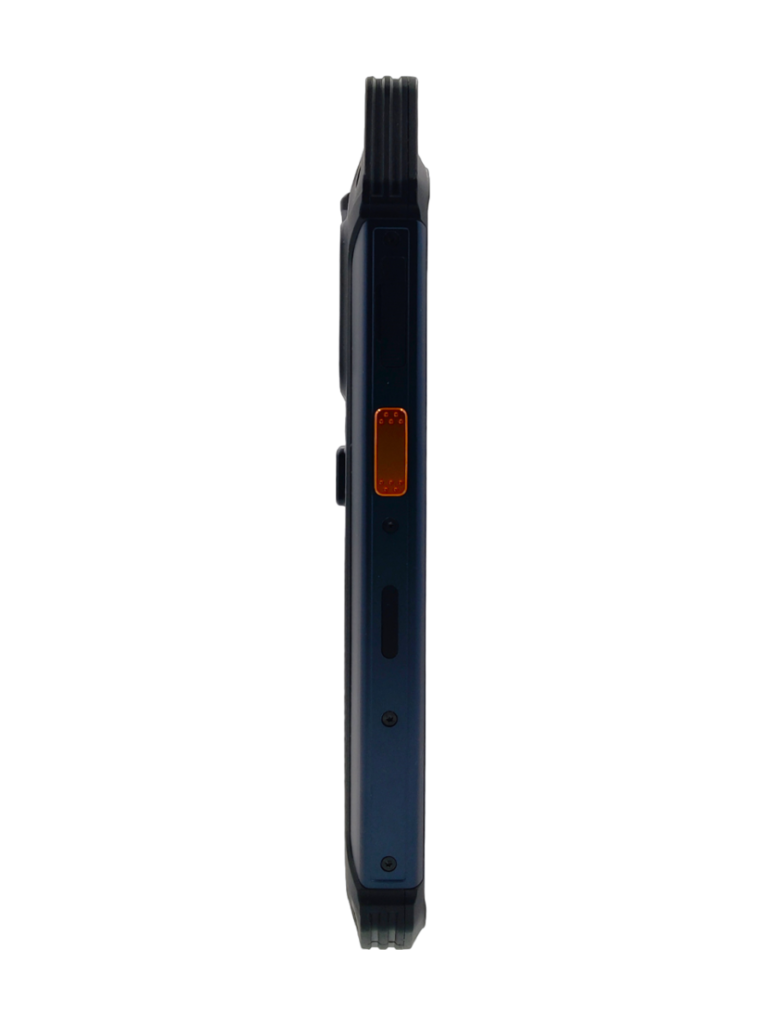

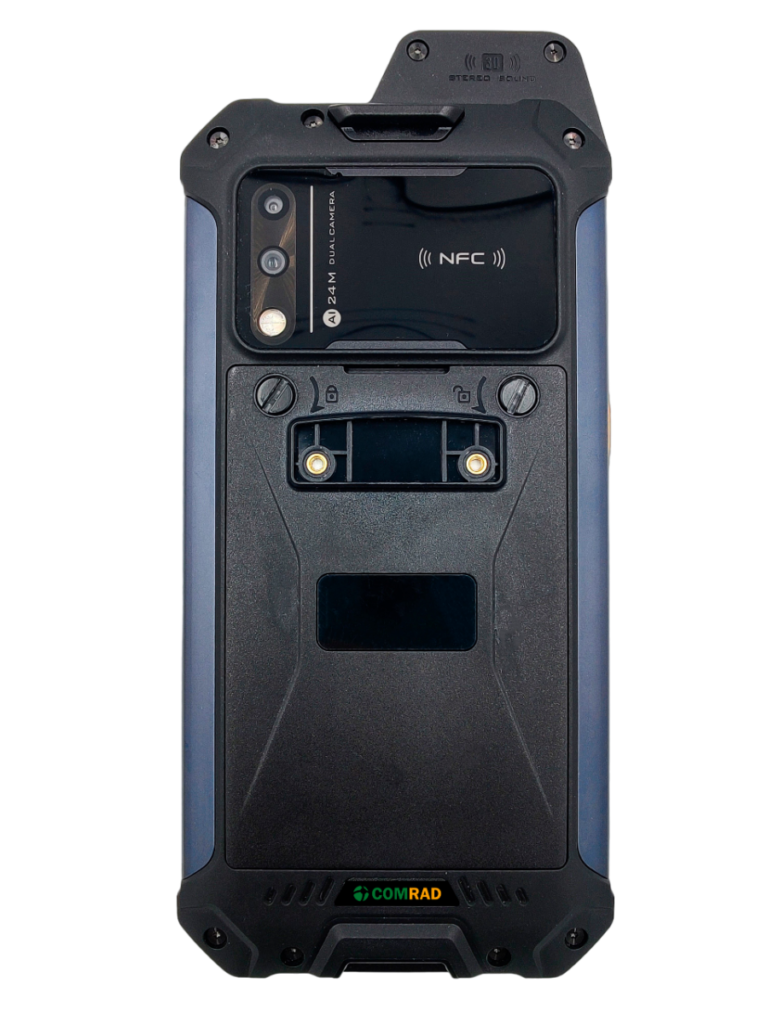

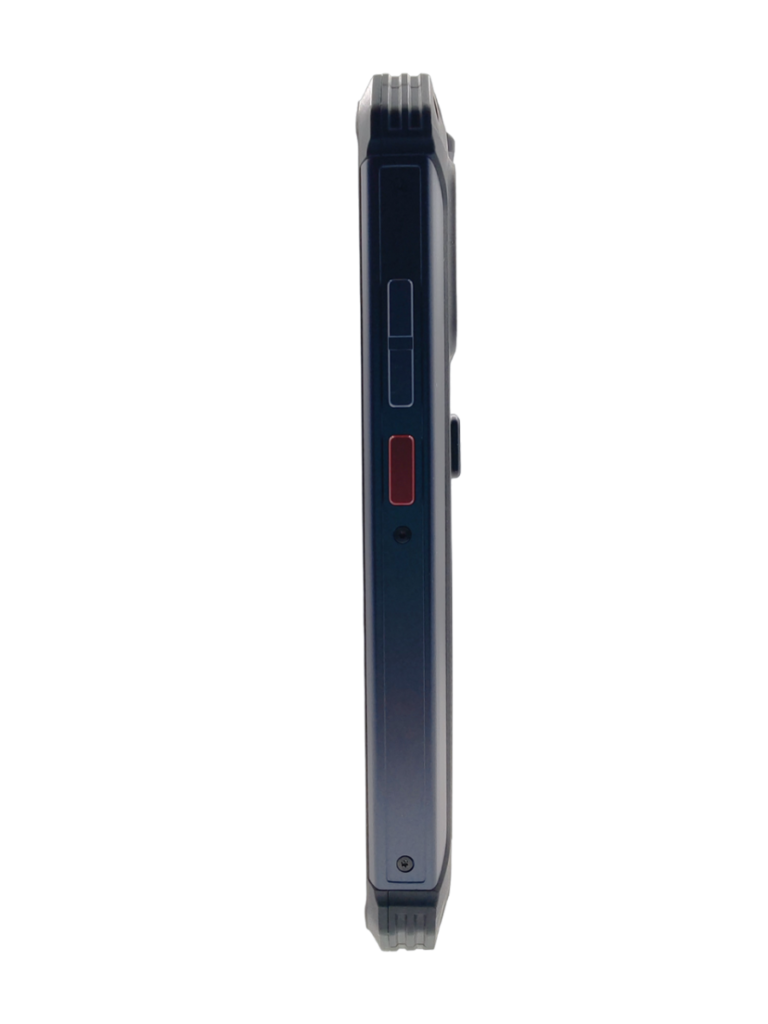

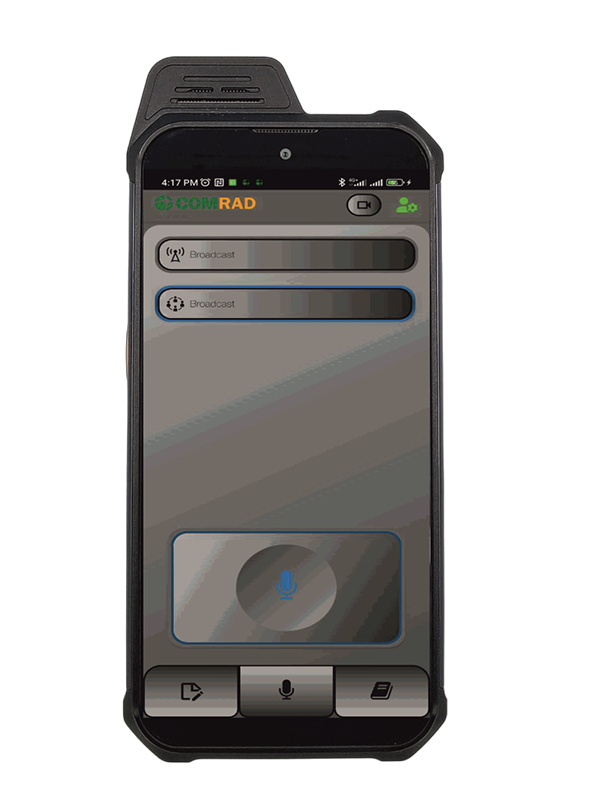

COMRAD CP41ex
Description
Intrinsically Safe Rugged Smartphone with POC functionality with installed COMRAD Client application, shipped with standard accessories: Li-Ion battery, USB cable, Desk-Top Charger, and with User manual.
CP41 Ex can work in COMRAD communication systems with connection through 3G/LTE or Wi-Fi networks and also as usual smartphone with varicose Android applications.
CP41 Ex can be used by middle level management and field technical staff for PTT group and individual communication and with other IT solutions in explosion risky areas at different market segments.
CP41 Ex – functional and reliable Intrinsically Safe Rugged Smartphone with POC functionality with convenient PTT button, 2W loudspeaker, 6,3” color touch screen, 2 (24MP and 5MP) cameras, SOS, GPS, and different sensors.
The indication of the group and channel number is shown on the screen. Powerful battery guaranty long-lasting and excellent performance. High level of water and dust protection (IP68). Intrinsically Safe design ATEX Gas and Dust (II 2 G Ex ib IIC T4 Gb IP68, II 2 D Ex tb IIIC T120C Db IP68).
Technical Data
| Operation System | Android |
|---|---|
| Processor | Octa-core, 2.0 GHz |
| Memory | RAM 4GB, ROM 64GB |
| Screen | 6.3 inch Multi-Touch Screen, Corning Gorria Glass, 1520 X 720 pixel |
| Loudspeaker | 2.0W |
| Special buttons | SOS,PTT,Volume(+/-),Power(on/off) |
| Camera | Main:24 MP, Micro Len 2 PM, Front:5 MP |
| Microphone | Dual pole mic with nose suppression |
| Interfaces | USB Type-C, USB 2.0, Support OTG |
| SIM Cart slots | Dual Nano SIM card or One Nano SIM card slot 1 + TF Card |
| Working bands | GSM:B2/B3/B5/B8; FDD-LTE: B 1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B; TDD-LTE: B 34/38/39/40/41 |
| Wi-Fi | 2.4GHz & 5GHz |
| Bluetooth | 5.0 |
| NFC | Yes |
| EX Standard ATEX | II 2 G Ex ib IIC T4 Gb IP68; II 2 D Ex tb IIIC T120C Db IP68 |
| Sensors | G-Sensor/Aceleration Sensor, GIRO Sensor, E-compass |
| Transmit power | 4 W (model CP30U), 5 W (model CP30V) |
| Dimensions | 162.3 x 61 x 38mm (Thick Battery, without Belt Clip and Antenna); 162.3 x 61 x 34.5mm (Thin Battery, without Belt Clip and Antenna) |
| Weight | 321 g |
| Working temperature | -10°C / +50°C |
| Storage temperature | -40°C / +70°C |
| Robust and Protection | IP68, Drop Test 1.5m MIL 810G |
| Positioning | GNSS |
| Battery | 4400 mAh Li-Po, replaceble |

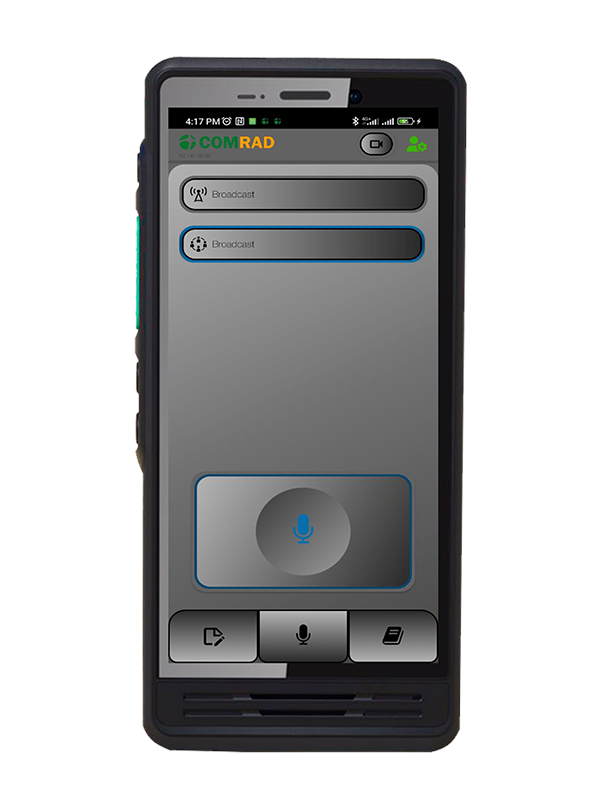

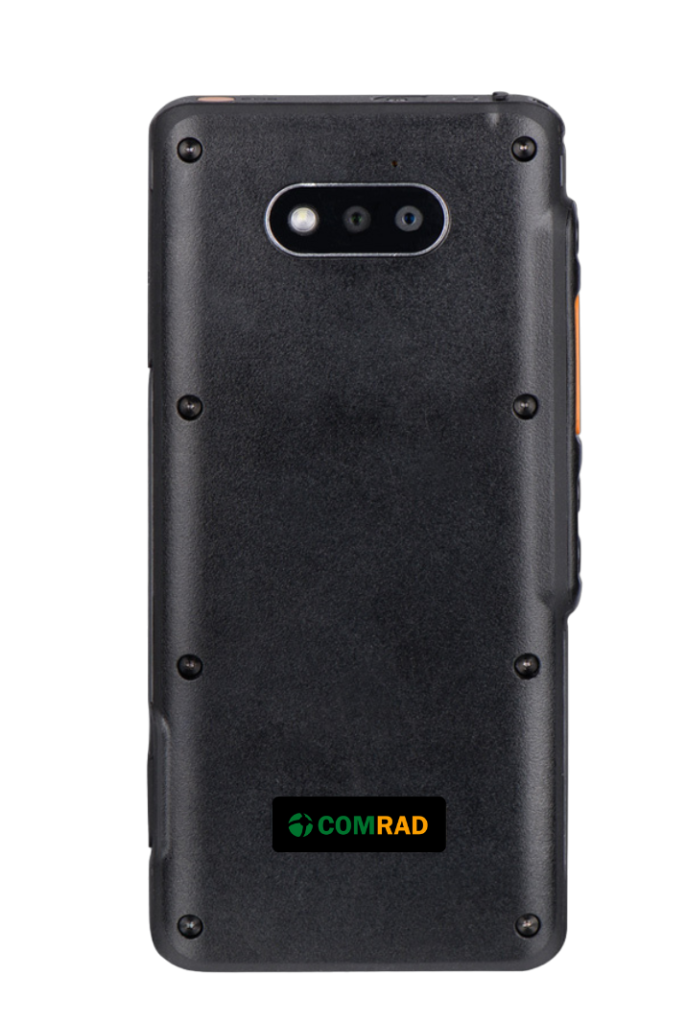

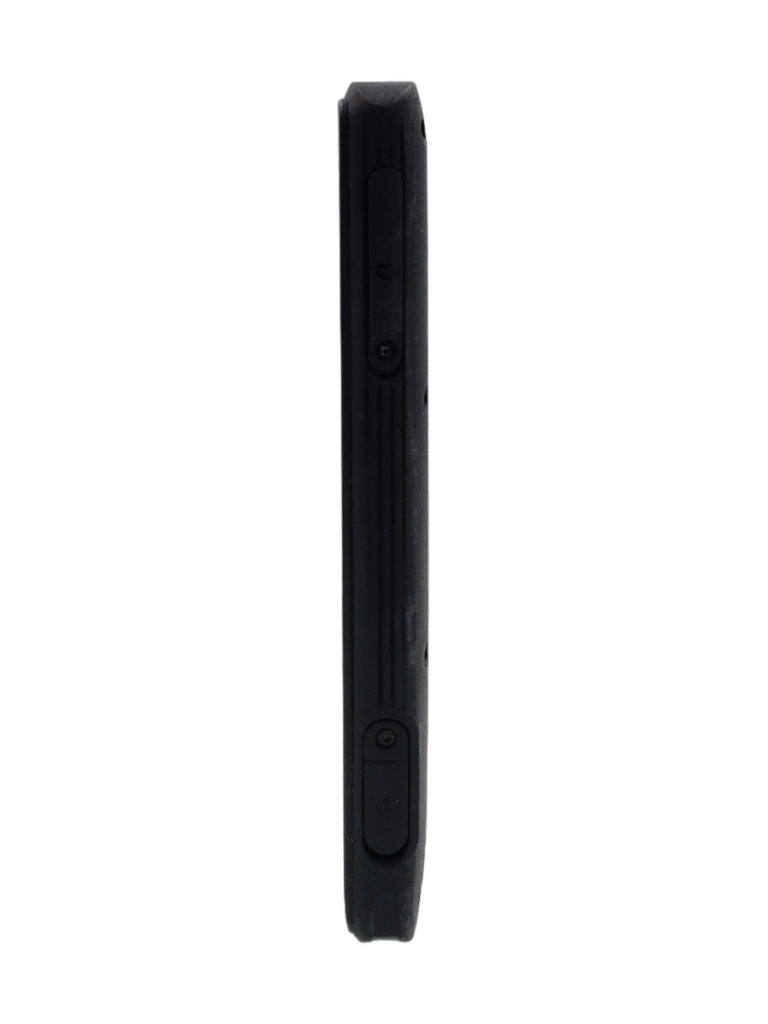

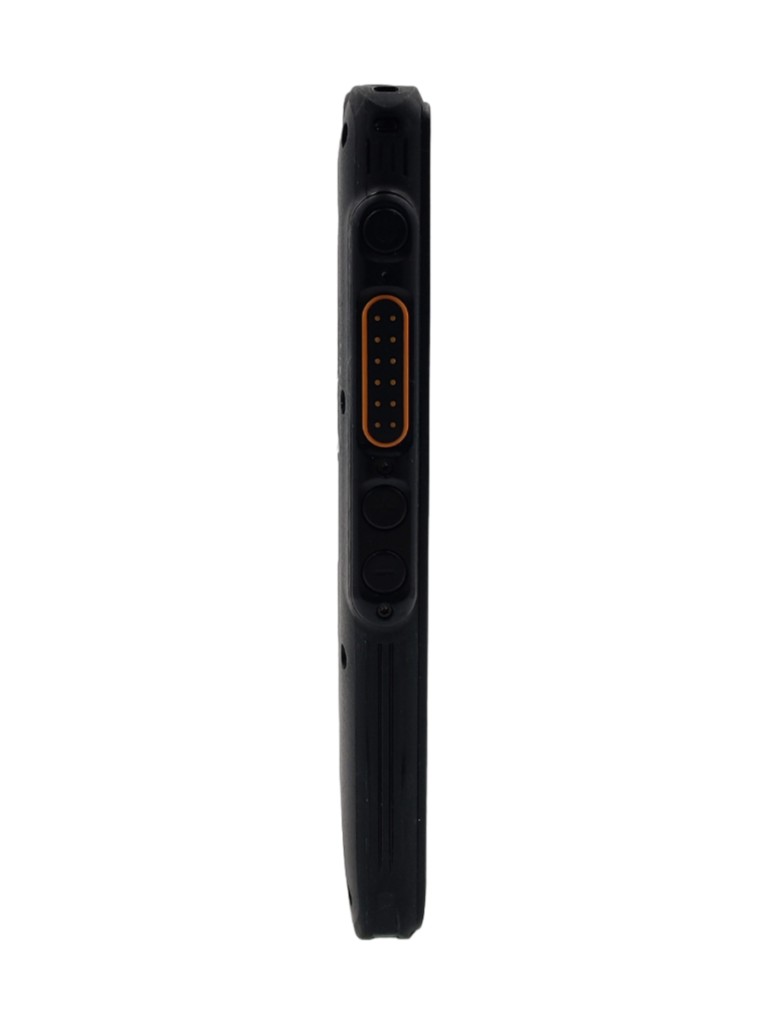

COMRAD CP42
Description
Rugged Smartphone with POC functionality with installed COMRAD Client application, shipped with standard accessories: Li-Ion battery, USB cable, Desk-Top Charger, and with User manual.
CP42 can work in COMRAD communication systems with connection through 3G/LTE or Wi-Fi networks and also as usual smartphone with various Android applications.
CP42 can be used by management and field technical staff for PTT group and individual communication and for work with other IT solutions in different market segments.
CP42 – functional and reliable Rugged Smartphone with POC functionality with convenient PTT button, 3W loudspeaker, 5” color touch screen, 2 (13MP and 5MP) cameras, SOS, GPS, and different sensors.
The indication of the group and channel number is shown on the screen. Powerful battery guaranty long-lasting and excellent performance. High level of water and dust protection (IP67). Powerful loudspeaker (3W) lets use CP42 in noisy areas.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 1.5 GHz |
| Memory | 2G+16G（Optional 3G + 32G), 1*TF card |
| Screen | 5 inch, G + FF Multi-touch Screen Glass: Gorilla Glass 3 |
| Loudspeaker | Ø25*35mm, Max 3W |
| Special buttons | PTT, Emergancy |
| Camera | Back:13.0MP with focus,Front:5.0MP |
| Microphone | Anti-interference microphone |
| Interfaces | USB Type-C 2.0, 3.5mm |
| SIM Cart slots | 2 Nano sim card |
| Working bands | GSM:B2,B3,B5,B8; FDD-LTE: B1,B3,B5,B7,B8,B20; TDD-LTE: B40; |
| Wi-Fi | 2.4G & 5G, IEEE 802.11 a/b/g/n |
| Bluetooth | 4.0 BLE |
| NFC | Optional |
| Sensors | Acceleration sensor Geomagnetic sensor |
| Dimensions | 156.8*75.7*16.0mm |
| Weight | 245g |
| Working temperature | -5°C / +55°C |
| Storage temperature | -40°C / +80°C |
| Robust and Protection | IP67, Drop Test 1.5m |
| Positioning | GNSS |
| Battery | 4600 mAh Li-Po |

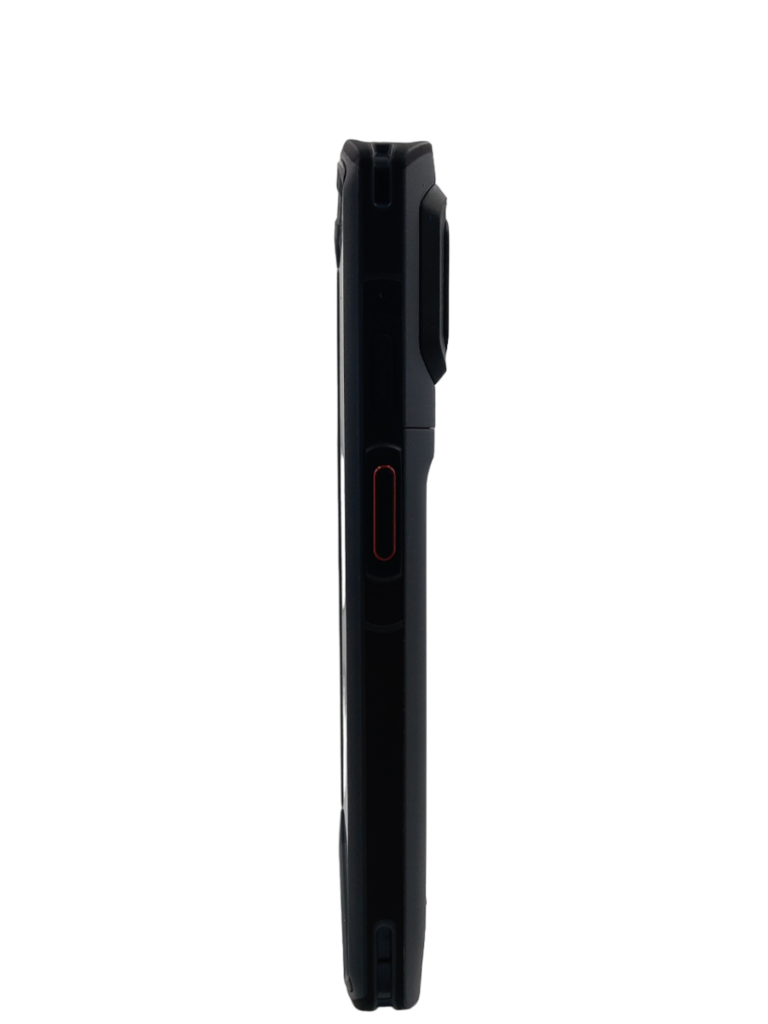

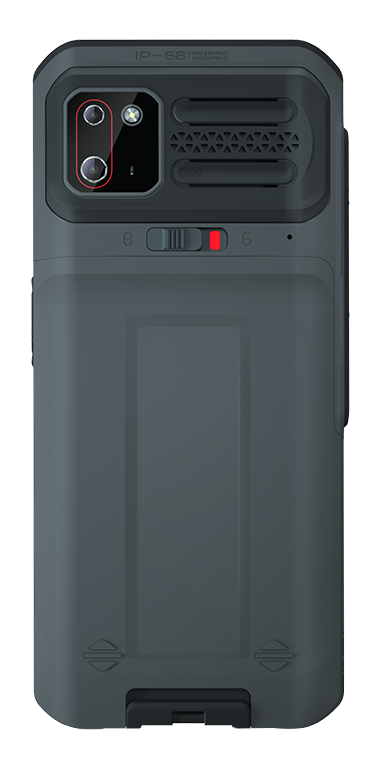

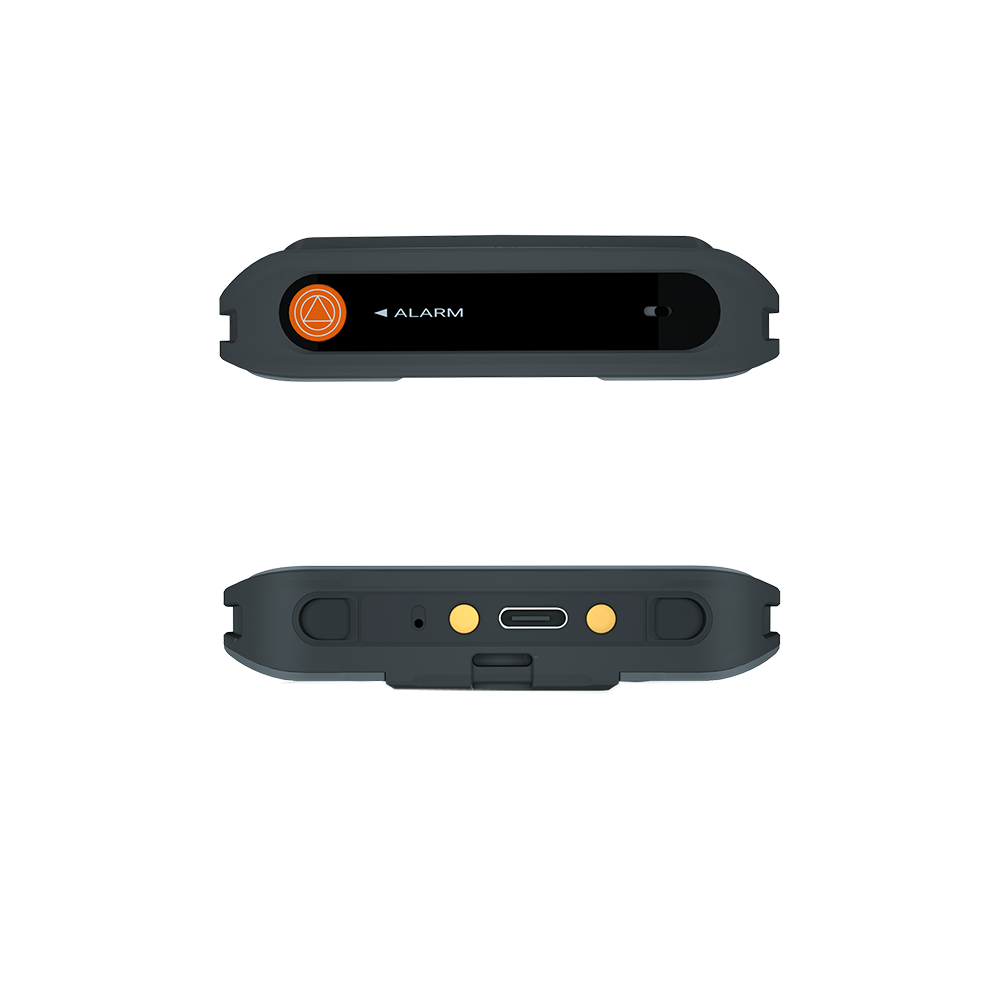

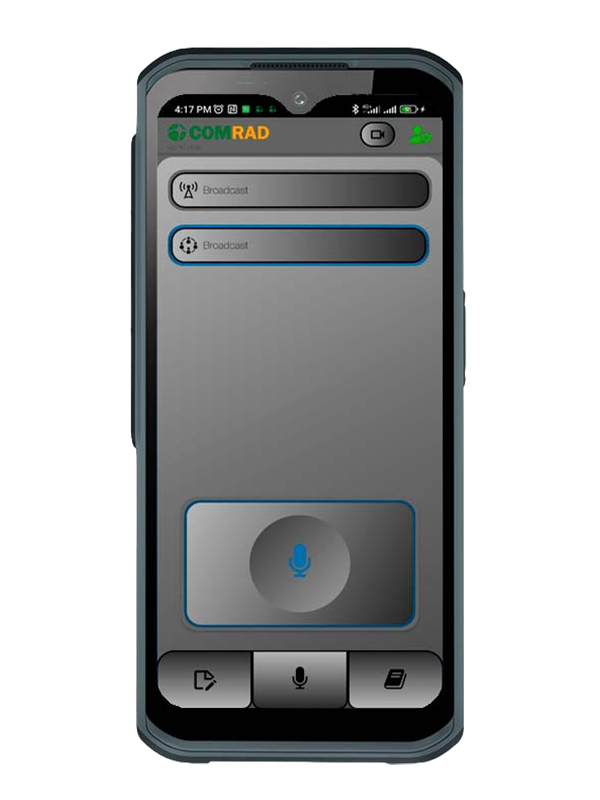

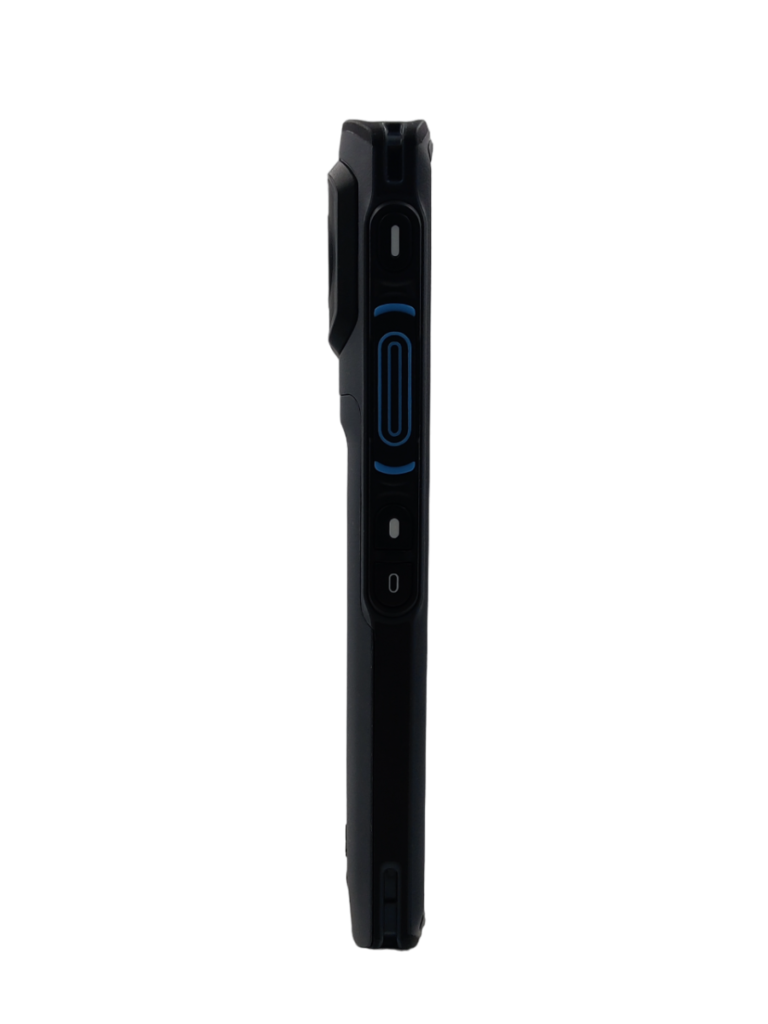

COMRAD CP42 5G
Description
Rugged Smartphone with POC functionality with installed COMRAD Client application, shipped with standard accessories: Li-Ion battery, USB cable, Charger, and with User manual.
CP42_5G can work in COMRAD communication systems with connection through 3G/LTE, 5G or Wi-Fi networks and also as usual smartphone with various Android applications.
CP42_5G can be used by management and field technical staff for PTT group and individual communication and for work with other IT solutions in different market segments.
CP42_5G – functional and reliable Rugged Smartphone with POC functionality with convenient PTT button, 2W loudspeaker, 6,3” color touch screen, 2 (64MP and 8MP) cameras, GPS, and different sensors.
The indication of the group and channel number is shown on the screen. Ultra powerful battery (6000 mAh) guaranty long-lasting and excellent performance. High level of water and dust protection (IP68). Robust (passed 1.5M Drop Test and MIL 810 H/GMS compliant).
Technical Data
| Operation System | Android |
|---|---|
| Processor | Octa-core, 2.0 GHz |
| Memory | 6G+128G (up to 8-256G) RAM + ROM) |
| Screen | 6.3 inch, 1080 x 2340 |
| Loudspeaker | Ø3040mm waterproof speaker, 2W |
| Special buttons | PTT, Emergency |
| Camera | Front camera 8.0MP; Rear camera 64.0MP + 16 MP |
| Microphone | Master-microphone+Slave-microphone+Noise-cancelling microphone |
| SIM Cart slots | Dual SIM Card+ TF Card |
| Working bands | 2G: B2/B3/B5/B8; 3G: B1/B2/B4/B5/ B6/B8/B19; FDD-LTE: B1/ B2/ B3/ B4/ B5/B7/ B8/B12/B13/B17/B19/ B20/B26/ B28/B66; TDD-LTE: B38/B40/41; NR: n1/n2/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n66 /n77/n78/n79 |
| Wi-Fi | 2.4G& 5GHz（802.11 a/b/g/n/ac/k/v/r/h |
| Bluetooth | 5.1 BLE |
| NFC | Support |
| Dimensions | 171.3*78.5*16.25mm |
| Weight | ≈320g |
| Working temperature | -20°C / +60°C |
| Storage temperature | -40°C / +85°C |
| Robust and Protection | IP68, Drop Test 1.5m, CE/FCC/MIL-STD-810H/GMS |
| Positioning | GNSS |
| Battery | 6000mAh (Removable) |

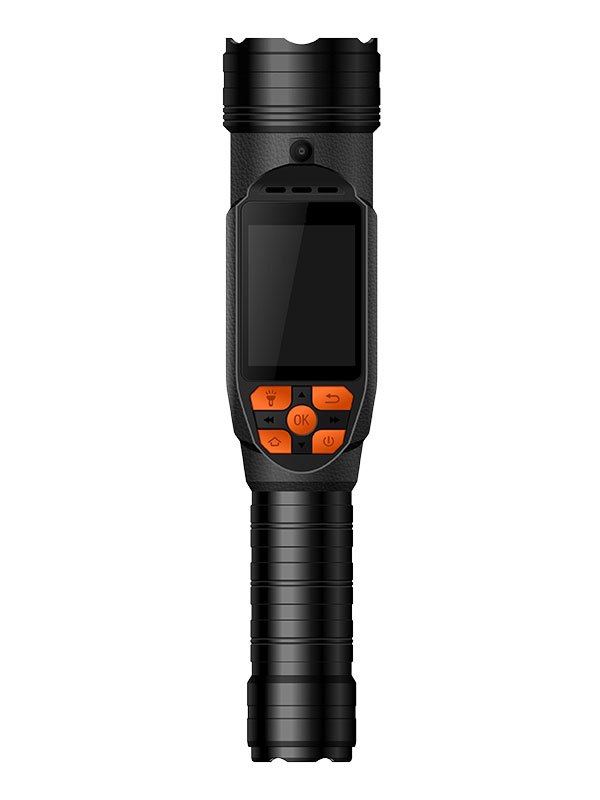

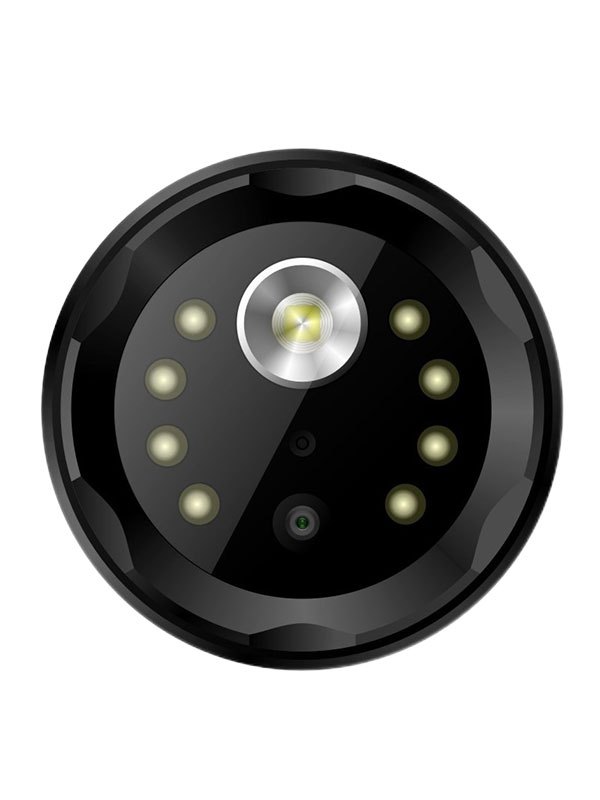

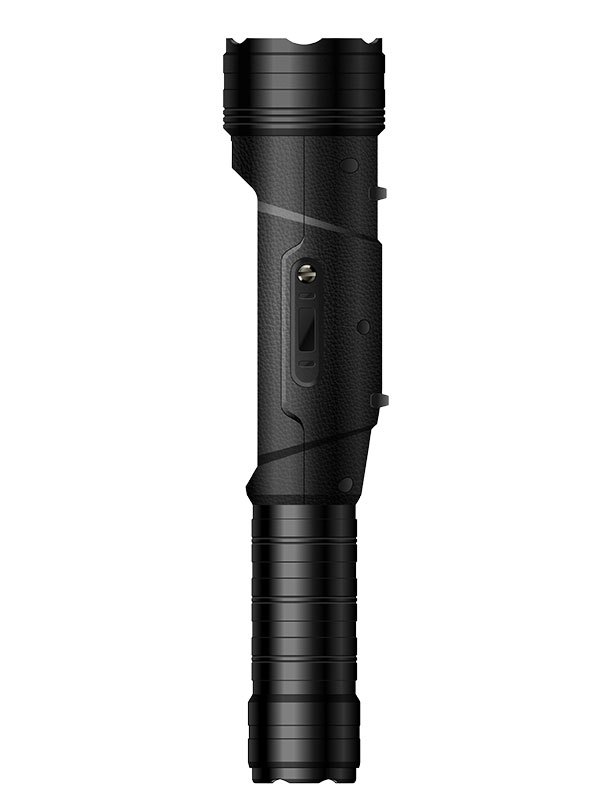

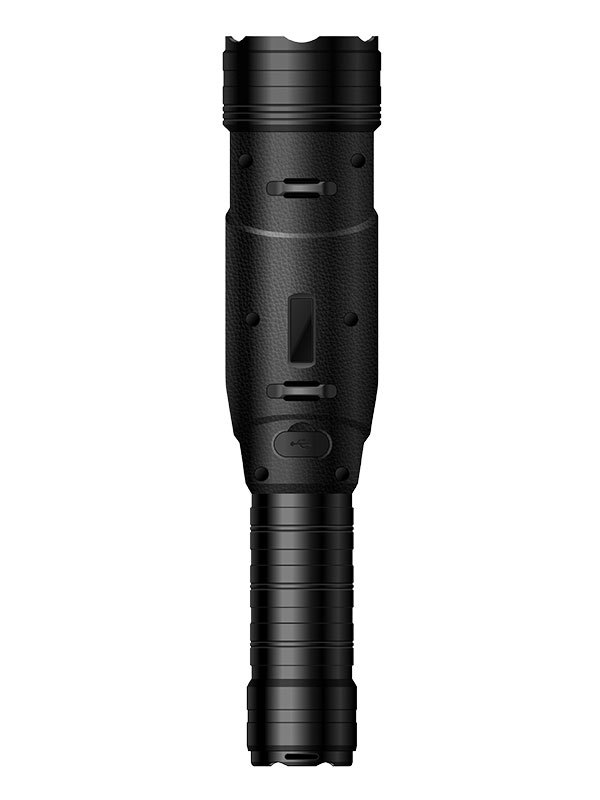

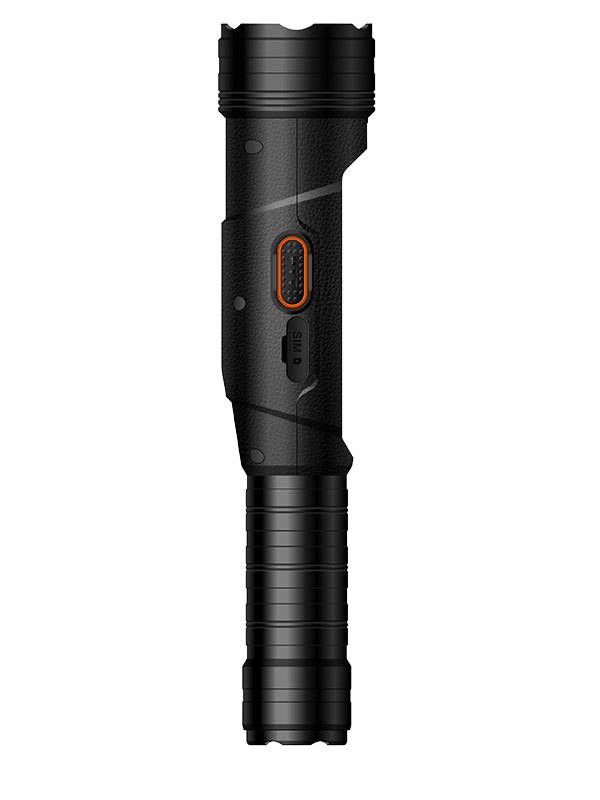

COMRAD CP7W
Description
Multifunctional portable device – Power LED Torch with integrated POC terminal. COMRAD Client application is preinstalled on the CP7W. The terminal is shipped with standard accessories: Li-Ion battery, USB cable, Charger and with User manual.
CP7W can work in COMRAD communication systems with connection though 3G/LTE or Wi-Fi networks.
CP7W can be used by tech staff in poorly lit areas where additional light, photo/video and prompt PTT communication are necessary for technical operations. CP7W lets get documentary evidence of the completed operation in form of photo/video which can be logged in the COMRAD system.
CP7W – universal and reliable portable device with LED Torch and POC terminal functionality. CP7W equipped power LED lighting, convenient PTT button, color 2,4” touch screen, 2 (13MP and 16MP) cameras, loudspeaker, different sensors, ultra power battery, GPS, navigation and volume regulation buttons.
The indication of the channel number and network signal level are shown on the screen. Working groups and necessary subscriber choice can be made on the screen.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 1.5 GHz |
| Memory | 2GB（RAM）+ 16GB（ROM) |
| Screen | 2.4″” IPS, Color, Touch Screen Support, Resolution: 320*480 pixels |
| Video/Photo | Conventional video front camera 720P/3gp rear camera 1080P/3gp photo JPG |
| Special buttons | PTT |
| Camera | first 13 MP, second 16 MP |
| Sensors | Vibration motor, gravity, geomagnetism, proximity, light sensor |
| SIM Cart slots | One Micro-SIM |
| Working bands | GSM:850 MHz, 900 MHz, 1800MHz, 1900 MHz; FDD-LTE:B1/B3/B8; TDD-LTE: B38/B39/B40/B41 |
| Interfaces | USB-C, M6 multimedia interface |
| Wi-Fi | 2.4GHz/5GHz 802.11 a/b/n/g |
| Bluetooth | 2.1+EDR/3.0+HS/4.0 |
| NFC | Yes |
| Dimensions | 56.6MM*266.8MM |
| Weight | 325g |
| Working temperature | -20°C / +60°C |
| Storage temperature | -40°C / +80°C |
| Positioning | GNSS |
| Protection | IP54 |
| Battery | 7000mAh; |
COMRAD CM21
Description
Mobile POC terminal with installed COMRAD Client application, shipped with standard accessories: mounting kit, set of cables, palm speaker microphone with PTT button and with User manual.
CM21 can work in COMRAD communication systems with connection though 3G/LTE or Wi-Fi networks.
CM21 can be used on the vehicle or in fixed installation. External power supply is necessary for terminal fixed installation and should be ordered additionally. External antenna can be connected to CM21 for work in poor coverage areas (ordered additionally).
CM21 – robust and reliable mobile POC terminal with palm speaker microphone with convenient PTT button, audio volume regulator, big color 5,5” touch screen, 2MP camera, powerful 5W loudspeaker, GPS, SOS and programmable buttons.
The indication of the channel number and network signal level are shown on the screen. Working groups and necessary subscriber choice can be made on the screen. It is possible to install and use other Android applications on the terminal.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 1.1 Ghz |
| Memory | Quad-core, 1.1 Ghz |
| Screen | 5.5” |
| Loudspeaker | Max 5W |
| Special buttons | PTT button on the Palm Speaker Microphone. |
| Camera | Full HD 2MP |
| SIM Cart slots | Micro-SIM card |
| Working bands | GSM: B2 / B3 / B5 / B8; FDD-LTE:B1 / B3 / B5 / B7 / B8 / B20 / B28; TDD-LTE: B38 / B39 / B40 / B41 |
| Wi-Fi | IEEE802.11a/b/g/n(2.4G) |
| Bluetooth | 4.0 BLE/2.1+EDR (Enhanced Data Rate) |
| Dimensions | 190 x 93 x 66 mm |
| Weight | 486g |
| Working temperature | -20°C / +80°C |
| Storage temperature | -30°C / +90°C |
| Robust and Protection | IP54 |
| Positioning | GNSS |

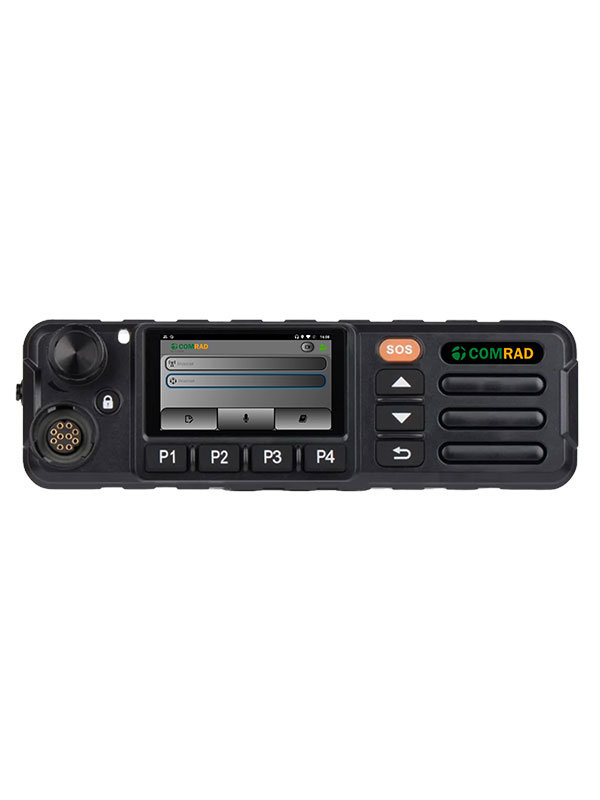

COMRAD CM22
Description
Mobile POC terminal with installed COMRAD Client application, shipped with standard accessories: mounting kit, set of cables, palm speaker microphone with PTT button and with User manual.
CM22 can work in COMRAD communication systems with connection though 3G/LTE or Wi-Fi networks.
CM22 can be used on the vehicle or in fixed installation. External power supply is necessary for terminal fixed installation and should be ordered additionally. External antenna can be connected to CM22 for work in poor coverage areas (ordered additionally).
CM22 – simple and reliable mobile POC terminal with palm speaker microphone with convenient PTT button, audio volume regulator, color 2,45” touch screen, powerful 5W loudspeaker, GPS, SOS, navigation and programmable buttons.
The indication of the channel number and network signal level are shown on the screen. Working groups and necessary subscriber choice can be made on the screen.
Technical Data
| Operation System | Android |
|---|---|
| Processor | Quad-core, 2.0 Ghz |
| Memory | 2GB（RAM）+ 16GB（ROM) |
| Screen | IPS 2.45″ G + F touch screen |
| Loudspeaker | Max 5W |
| Special buttons | PTT button on the Palm Speaker Microphone |
| Camera | optional |
| SIM Cart slots | Micro-SIM card |
| Working bands | GSM: B2/B3/B5/B8; FDD-LTE:B1/B3/B5/B7/B8/B20; TDD-LTE: B38/B39/B40/B41 |
| Wi-Fi | IEEE802.11a/b/g/n(2.4G) & 5GHz |
| Bluetooth | 4.0 & 5.0 BLE |
| Dimensions | 188 x 58 x 87 mm |
| Weight | 450g |
| Working temperature | -20°C / +60°C |
| Storage temperature | -30°C / +70°C |
| Robust and Protection | IP54 |
| Positioning | GNSS |

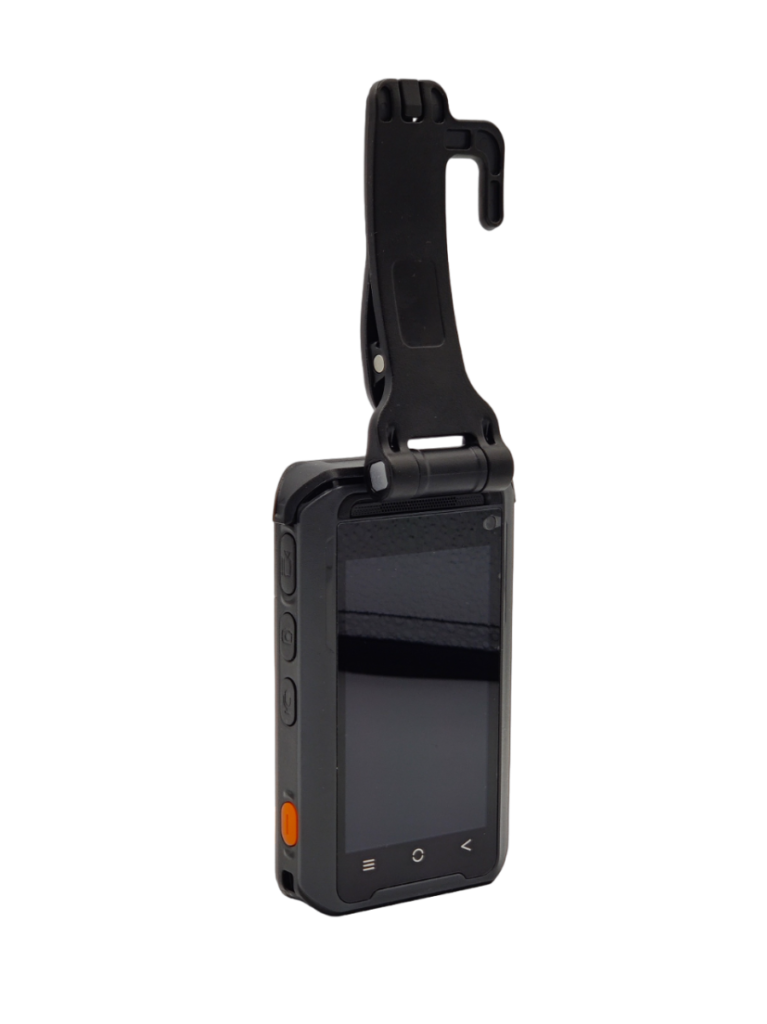

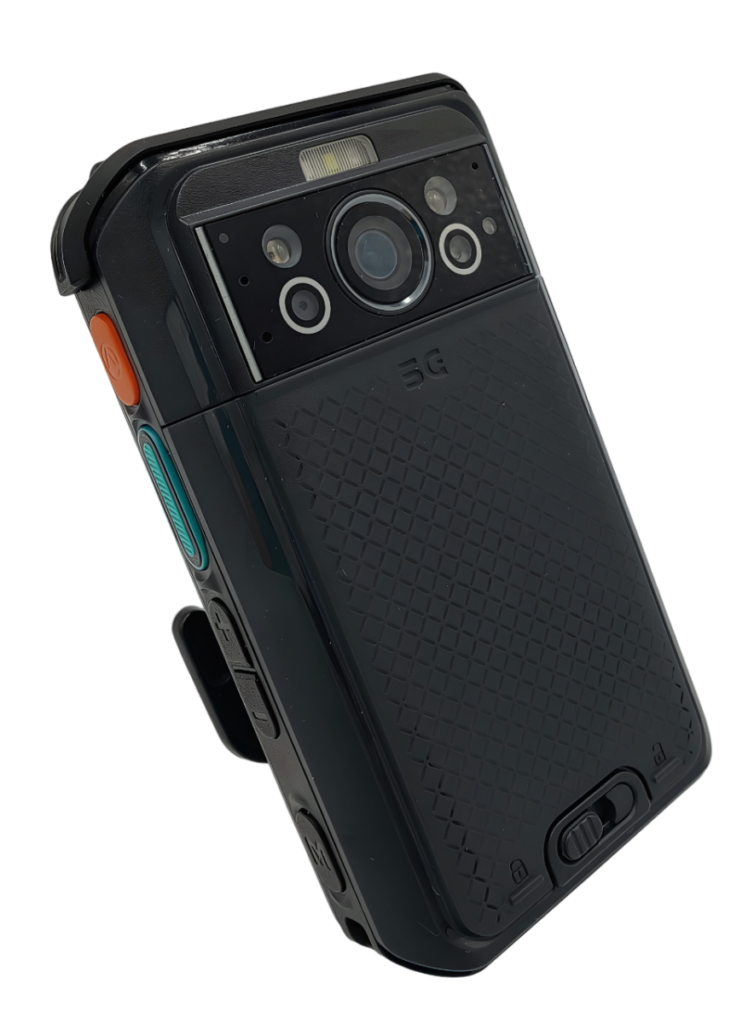

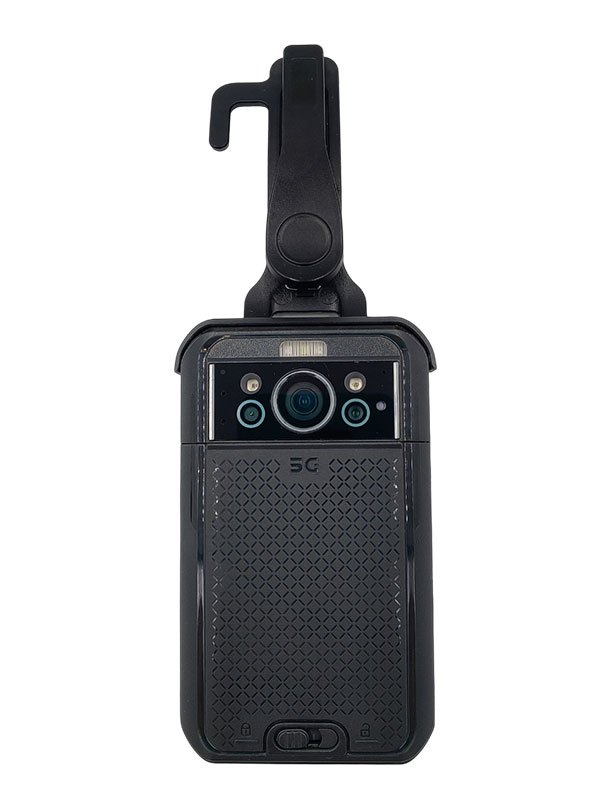

COMRAD RC02
Description
Personal Video Recorder with integrated POC terminal. COMRAD Client application is preinstalled on the RC02. The terminal is shipped with standard accessories: Li-Ion battery, USB cable, Charger, shoulder strap mount and with User manual.
RC02 can work in COMRAD communication systems with connection though 3G/LTE, 5G or Wi-Fi networks.
RC02 can be used by security or tech staff in different market segments where video recording and PTT individual or group communication is necessary. Video records can be copied from CP02 and stored by special COMRAD software.
RC02 – compact, universal and reliable portable device with Video recording and POC functionality. RC02 equipped power LED lighting, convenient PTT button, color 3,1” screen, 2 Cameras (Main 13MP + Night Vision 2MP + Wide Angle 5MP and Front 2MP), 2,5 W loudspeaker, powerful battery, GPS, navigation and volume regulation buttons.
The indication of the group and channel number is shown on the screen. Powerful battery guaranty long-lasting and excellent performance. High level of water and dust protection (IP68). Robust (passed 2M Drop Test and MIL 810 G compliant).
Technical Data
| Operation System | Android |
|---|---|
| Processor | Octa-core, 2.0 GHz |
| Memory | 4GB（RAM）+ 64GB（ROM) |
| Screen | LCD: 3.1″ 480*800 |
| Loudspeaker | 2.5 W |
| Special buttons | PTT |
| Camera | 2 MP + Wide Angle Camera 5 MP + Front Camera 2 MP |
| SIM Cart slots | Dual Nano Sim |
| Working bands | GSM:B2 B3 B5 B8; WCDMA:B1 B2 B5 B8; TDS: B34 B39; FDD-LTE:B1 B2 B3 B5 B7 B8 B26 B28A/B; TDD-LTE:B34 B38 B39 B40 B41; CDMA: BC0; 5G:N1 N3 N41 N77 N78 N79 N28AB |
| Wi-Fi | 2.4G & 5 GHz |
| Bluetooth | 5.1 |
| Dimensions | 100mm*60mm*22mm |
| Weight | 190g |
| Working temperature | -30°C / +55°C |
| Storage temperature | -40°C / +70°C |
| Robust and Protection | IP68, 2 m drop test, MIL-STD 810G |
| Interfaces | USB-Type С, USB 3.0 |
| Battery | 3500mAh |
| Positioning, NFC | GNSS; NFC |
English
Spanish
